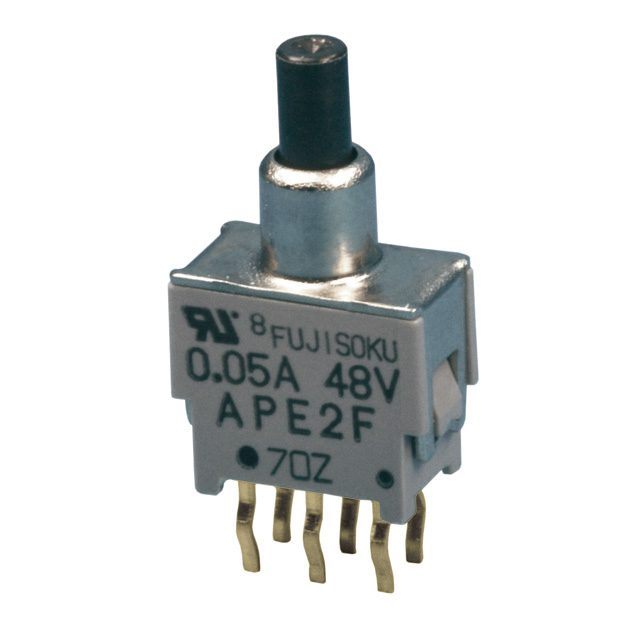

See larger image

SeekIC No. : 004167332 Detail

APE2F-5M-10-Z: SWITCH PUSH DPDT 0.05A 48V

APE2F-5M-10-Z Data Sheet

US $ 3.02~3.02 / Piece | Get Latest Price

Part Number:: APE2F-5M-10-Z
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$3.02

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/6/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	APE	Manufacturer:	Copal Electronics Inc
Number of Receivers :	11	Type:	Standard
Circuit:	DPDT	Switch Function:	On-Mom
Current Rating:	50mA (AC/DC)	Voltage Rating - AC:	48V
Voltage Rating - DC:	48V	Actuator Type:	Plunger for Cap
Color - Actuator/Cap:	Black	Illumination Type, Color:	-
Illumination Voltage (Nominal):	-	Mounting Type:	Through Hole, Right Angle
Termination Style:	PC Pin	Ingress Protection:	-
Features:	Sealed - Fully	Panel Cutout Dimensions:	-

Description

Type: Standard
Circuit: DPDT
Actuator Type: Plunger for Cap
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Termination Style: PC Pin
Ingress Protection: -
Panel Cutout Dimensions: -
Packaging: Bulk
Color - Actuator/Cap: Black
Switch Function: On-Mom
Mounting Type: Through Hole, Right Angle
Current Rating: 50mA (AC/DC)
Voltage Rating - AC: 48V
Voltage Rating - DC: 48V
Manufacturer: Copal Electronics Inc
Series: APE
Features: Sealed - Fully

Parameters:

Technical/Catalog Information	APE2F-5M-10-Z
Vendor	Copal Electronics Inc
Category	Switches
Actuator Type	Plunger for Cap
Circuit	DPDT
Contact Rating @ Voltage	0.05A @ 48VAC/DC
Illumination Type, Color	-
Illumination Voltage	-
Mounting Type	Through Hole
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	APE2F 5M 10 Z APE2F5M10Z 563 1185 ND 5631185ND 563-1185
