Product Details

Description

Features:

• 1.4V maximum dropout at full load current
• Built-in thermal shutdown
• Output current limiting
• Adjustable output voltage or fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
• Fast transient response
• Good noise rejection
• Package : TO252, TO263, TO220
• RoHS Compliant

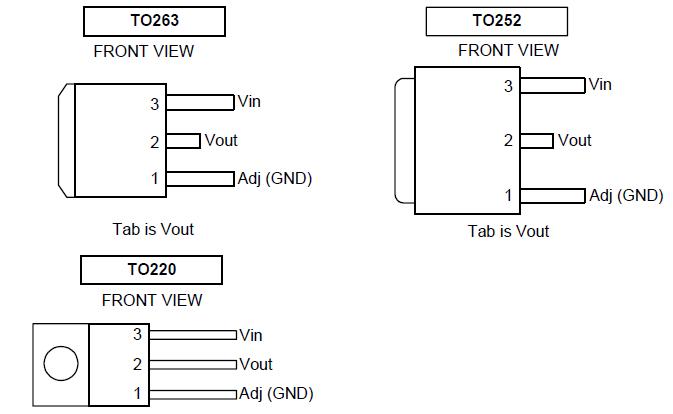

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Rating	Unit
V_in	DC Supply Voltage	-0.3 to 12	V
P_D	Power Dissipation	Internally Limited
T_ST	Storage Temperature	-65 to +150	°C
T_OP	Operating Junction Temperature Range	0 to +150	°C

Description

APE1084 is a low dropout positive adjustable or fixed-mode regulator with minimum of 5.0A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply.APE1084 is also well suited for other applications such as VGA cards. APE1084 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25 to 3.3V with 4.7 to 12V input supply.
