SeekIC No. : 003612954 Detail

APB3025ESGC: LED,RED/GRN CLR 120DEG SMT

APB3025ESGC Data Sheet

US $ .08~.08 / Piece | Get Latest Price

Part Number:: APB3025ESGC
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~2000

Unit Price
$.08

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

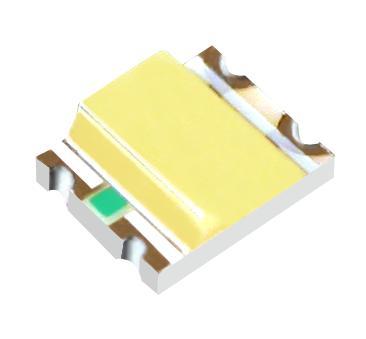

APB3025CGKQWDF evaluate
US $.28 - .51 / Piece

Standard LED - SMD Grn/White 50/380mcd 570nm 120 Deg
APB3025ESGC-F01 evaluate
US $.08 - .16 / Piece

Standard LED - SMD RED/SPR BRT GREEN 625/568nm 12mcd
APB3025SURKQWDF evaluate
US $.28 - .52 / Piece

Standard LED - SMD Red/White 220/380mcd 630nm 120 Deg

Product Details

Quick Details

Series:	-	Manufacturer:	Kingbright Corp
Color:	Green, Red	Millicandela Rating:	12mcd Green, 12mcd Red
Voltage - Forward (Vf) Typ:	2.2V Green, 2V Red	Current - Test:	20mA
Wavelength - Dominant:	568nm, 625nm	Wavelength - Peak:	565nm, 627nm
Viewing Angle:	120°	Lens Type:	Clear
Package / Case :	SOT-339	Lens Style/Size:	Round with Domed Top, 2mm
Package / Case:	4-SMD, No Lead	Size / Dimension:	3.00mm L x 2.50mm W
Height:	1.10mm	Mounting Type:	Surface Mount

Description

Series: -
Current - Test: 20mA
Lens Type: Clear
Mounting Type: Surface Mount
Viewing Angle: 120°
Height: 1.10mm
Packaging: Tape & Reel (TR)
Lens Style/Size: Round with Domed Top, 2mm
Color: Green, Red
Voltage - Forward (Vf) Typ: 2.2V Green, 2V Red
Wavelength - Dominant: 568nm, 625nm
Size / Dimension: 3.00mm L x 2.50mm W
Package / Case: 4-SMD, No Lead
Manufacturer: Kingbright Corp
Millicandela Rating: 12mcd Green, 12mcd Red
Wavelength - Peak: 565nm, 627nm

Parameters:

Technical/Catalog Information	APB3025ESGC
Vendor	Kingbright Corp
Category	Optoelectronics
Color	Green, Red
Lens Style/Size	Rectangle with Flat Top
Millicandela Rating	12mcd Green, 12mcd Red
Voltage - Forward (Vf) Typ	2.5V Green, 2.5V Orange
Wavelength - Dominant	568nm, 625nm
Wavelength - Peak	565nm, 627nm
Current - Test	20mA
Viewing Angle	120°
Lens Type	Clear
Luminous Flux	38 mlm Green, 38 mlm Red
Package / Case	*
Mounting Type	Surface Mount
Packaging	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	APB3025ESGC APB3025ESGC
