AP78L05

Features: • 5.0V output voltage with tolerances of ±5% over the operating temperature ranges• Output current in excess of 100mA• Internal thermal overload protection• Output transistor safe area protection• Internal short circuit current limiting• No external co...

product image

AP78L05 Picture
See larger image
SeekIC No. : 004286383 Detail

AP78L05: Features: • 5.0V output voltage with tolerances of ±5% over the operating temperature ranges• Output current in excess of 100mA• Internal thermal overload protection• Output ...

AP78L05 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AP78L05
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5.0V output voltage with tolerances of ±5% over the operating temperature ranges
• Output current in excess of 100mA
• Internal thermal overload protection
• Output transistor safe area protection
• Internal short circuit current limiting
• No external components
• Available in plastic TO92-3L and plastic SOP-8L low profile packages
• Lead Free Finish / RoHS Compliant (Note 1)
• SOP-8L: Available in "Green" Molding Compound (No Br, Sb) (Note 2)




Application

• Communication
• CD-ROM
• DVD-Player
• Set-Top Box

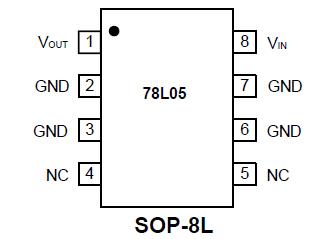

Pinout

Connection Diagram




Specifications

Symbol Parameter Rating Unit
VCC Supply Voltage +30 V
VOUT Output Voltage to Ground 5 V
TST Storage Temperature -65 to +150
TOP Operating Junction Temperature -20 to 125
TMJ Maximum Junction Temperature 150


Part Number AP78L05
Dropout Voltage (V) (Max) 1.9
Operating Ambient Temp Range (°C) 0 to +85
Operating Input Voltage (V) 30
Output Current (A) 0.1
Output Voltage (V) 5
PSRR (dB) typ 62 at 120Hz
Quiescent Current (uA) typ 3





Description

The AP78L05 is a three terminal positive regulator available with fixed output voltages. It can be used in a wide range of applications. It can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the AP78L05 to be used in logic system, instrumentation, HiFi, and other solid state electronic equipments.

The AP78L05 is available in the plastic TO92-3L and SOP-8L package using industrial standard package technology. The regulator can deliver 100mA output current with adequate heat sinking. Current limiting is included to limit the peak output current to a safe value. Safe area protection for the output transistors is provided to limit internal power dissipation. Thermal overload protection is integrated to prevent the IC from overheat due to abnormal condition.
