Product Details

Description



Features:

· 3.3V, 5V, 12V Fixed (±4% Tolerance) and Adjustable (±3% Tolerance) Output Versions
· Guaranteed 3A Output Load Current
· 150kHz Fixed Frequency Internal Oscillator
· Input Voltage Range up to 32V
· Requires only 4 external components
· High Efficiency up to 90%
· Excellent Line and Load Regulation
· TTL Shutdown Capability
· Low Power Standby Mode, IQ Typically 80µA
· Built-in Current Limit Protection and Thermal Shutdown Circuit


Application

· LCD Monitor and LCD TV
· On-Card DC-DC Converter
· DVD Recorder
· PDP

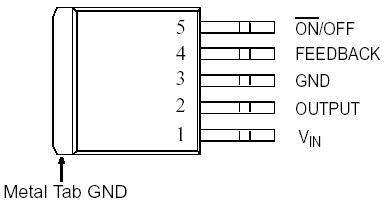

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Input Voltage VIN 40 V
ON/OFF Pin Voltage VON/OFF 40 V
Feedback Pin Voltage VFB 40 V
Operating Junction Temperature TJ 150 °C
Thermal Resistance
(Junction to Ambient, No Heatsink)		 TO-220-5 RJA 60 °C/W
TO-263-5
Lead Temperature (Soldering, 10sec) TLEAD 260 °C
Storage Temperature Range TSTG -65 to 150 °C

Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.




Description

The AP3003 series of regulators are fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with excellent line and load regulation.

These regulators include internal frequency compensation and a fixed frequency oscillator so that they are easy to use. A system adopting AP3003 requires a minimum number of external components to work. A standard series of inductors, optimized for use with the AP3003 series, are available from several manufacturers.

This feature greatly simplifies the design of switch-mode power supplies. AP3003 are available in TO-220-5 and TO-263-5 packages.
