Product Details

Description

Features:

` High Ripple Rejection: 70dB at f=1KHz
` Ultra Low Dropout Voltage: 0.3V Typical at I_OUT=300mA
` Low Operation Current: 80A Typical
` High Line Regulation: 4mV Typical
` High Load Regulation: 12mV Typical at I_OUT=300mA
` High Output Voltage Accuracy: ± 2%
` Output Voltage: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V

Application

· Mobile Phones, Cordless Phones
· Portable Games
· Cameras
· Portable AV Equipment
· Battery Powered Equipment

Pinout

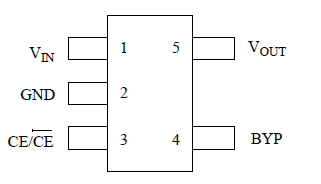

Connection Diagram

Description

The AP2117 is positive voltage regulator IC designed by CMOS process. The AP2117 has features of low dropout voltage, low noise, high output voltage accuracy and low current consumption. It consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, a circuit for over-temperature protection, and a chip enable circuit. Thus, the AP2117 is suitable for various power sources for portable application.
