AP1506

Features:


Output voltage: 3.3V, 5V, 12V and adjustableoutput version
Adjustable version output voltage range, 1.23V to18V+4%
150KHz +15% fixed switching frequency
Voltage mode non-synchronous PWM control
Thermal-shutdown and current-limit protection
ON/OFF shutdown control input
Operating voltage can be up to 22V
Output load current: 3A
TO220-5L and TO263-5L packages
Low power standby mode
Built-in switching transistor on chip





Application

Simple High-efficiency step-down regulator
On-card switching regulators
Positive to negative converter





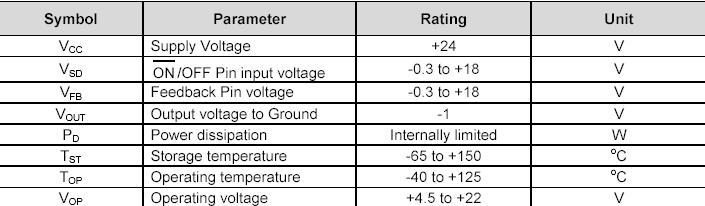

Specifications

Part Number	AP1506
Efficiency (%)	89
Frequency (Hz) typ	150K Fixed
Min and Max Input Voltage (V)	4.5 ~ 22
Output Current (A)	3
Output Voltage (V)	3.3/ 5/ 12/ ADJ 1.23 to 18
Standby Quiescent Current (uA) typ	70
Type	Buck

Description

The AP1506 series are monolithic IC designed for astep-down DC/DC converter, and own the ability ofdriving a 3A load without external transistor. Due toreducing the number of external component, theboard space can be saved easily. The externalshutdown function can be controlled by logic leveland then come into standby mode. The internal compensation makes feedback control have goodline and load regulation without external design.Regardingprotected function, thermal shutdown isto prevent over temperature operating from damage,and current limit is to prevent over current operatingof the output switch. If current limit functionoccurred and VFB is down to 0.5V below, theswitching frequency will be reduced. The AP1506series operate at a switching frequency of 150KHzthus allowing smaller sized filter components thanwhat would be needed with lower frequencyswitching regulators. Other features include a guaranteed +4% tolerance on output voltage underspecified input voltage and output load conditions,and +15% on the oscillator frequency. The outputversion included fixed 3.3V, 5V, 12V, and anadjustable type. The packages are available in astandard 5-lead TO-220 package or a 5-leadTO-263.
