Features:

• Input Voltage Range is up 2.7 to 5.5V
• Dropout Voltage 400mV at 300mA Output Current
• Guaranteed 300mA Output Current
• Internal Ron = 1.5 PMOS draws no Base Current
• Low Quiescent Current 50A
• Output Voltage: 1.5V/1.8V/2.0V/2.5V/2.8V/3.0V/3.3V/
3.5V; Accuracy 2%
• Active Low Shutdown Function (EN pin)
• Fast Transient Response
• Good Load Regulation
• Current Limit and Thermal Shutdown Protection
• Short Circuit Current Fold-Back
• Lead-Free and Green Package: SOT89-5L is
available in Lead-Free only. SOT25 is available in both
Lead-Free and Green (Note 1).




Application

• Battery Powered Device
• Wireless Communication
• CD-ROM, DVD, and LAN Card
• PC Peripheral

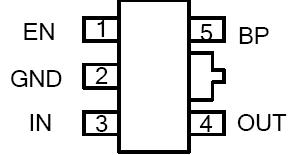

Pinout






Specifications

Symbol Parameter Rating Unit
VCC Input Voltage +6 V
TOP Operating Ambient Temperature Range -40 to +125 ºC
TST Storage Temperature Range -65 to +150 ºC
PD Power Dissipation, PD @TA = 25ºC
SOT89-5L 500 W
SOT25 250 W
JA Package Thermal Resistance
SOT89-5L +100 ºC/W
SOT25 +250 ºC/W





Description

The AP131 is a 300mA, fixed output voltage, low dropout linear regulator. The Device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is ON when the EN pin is set to logic high level.

The characteristics of low dropout voltage and less quiescent current make AP131 good for some critical current applications, for example, some battery powered devices. The typical quiescent current is approximately 50A from zero to maximum load. Due to the internal flexible design, it results in extensively fixed output voltage versions and makes it convenient to use for applications. Built-in current-limit and thermal- shutdown functions prevent any fault condition from IC damage. An external capacitor can be connected to the BP pin and reduce the output noise.
