AP1120S

Features: • 1.3V maximum dropout at full load current• Fast transient response• Output current limiting for each channel• Built-in thermal shutdown each channel• Good noise rejection• Dual output ch1=3.3V, ch2=2.5V(1.8V for B version)• Lead-Free Package: S...

product image

AP1120S Picture
See larger image
SeekIC No. : 004286091 Detail

AP1120S: Features: • 1.3V maximum dropout at full load current• Fast transient response• Output current limiting for each channel• Built-in thermal shutdown each channel• Good n...

AP1120S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AP1120S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.3V maximum dropout at full load current
• Fast transient response
• Output current limiting for each channel
• Built-in thermal shutdown each channel
• Good noise rejection
• Dual output ch1=3.3V, ch2=2.5V
(1.8V for B version)
• Lead-Free Package: SOP-8L
• Lead Free Finish/RoHS Compliant for Lead Free
products (Note 1)




Pinout

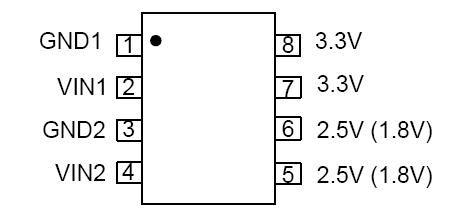

Connection Diagram




Specifications

Symbol Parameter Rating Unit
VIN DC Supply Voltage -0.3 to 18 V V
PD Power Dissipation Internally Limited
TST Storage Temperature -65 to +150 °C
TOP Operating Junction Temperature Range 0 to +150 °C


Part Number AP1120S
Output Current (A) 1
Channel 2
Dropout Voltage (V) (Max) 1.4
PSRR (dB) typ 60 at 120Hz
Operating Input Voltage (V) 18
Output Voltage (V) ch1:3.3
ch2: 2.5
Operating Ambient Temp Range (°C) 0 to +150





Description

AP1120S series are low dropout positive regulator to provide 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V/2.5V or 3.3V/1.8V logic supply. AP1120S series are guaranteed to have <1.3V dropout at full load current making it ideal to provide well regulated outputs dual channels with up to 18V input supply
