Description

Features:

• 4.5V to 16V operating input voltage range
• 32 m internal PFET switch for high efficiency: up to 95%
• Internal soft start
• Output voltage adjustable to 0.8V
• 5A continuous output current
• Fixed 500kHz PWM operation
• Cycle-by-cycle current limit
• Short-circuit protection
• Thermal shutdown
• Small size SO-8 and DFN-8 packages

Application

• Point of load dc/dc conversion
• PCIe graphics cards
• Set top boxes
• DVD drives and HDD
• LCD panels
• Cable modems
• Telecom/Networking/Datacom equipment

Pinout

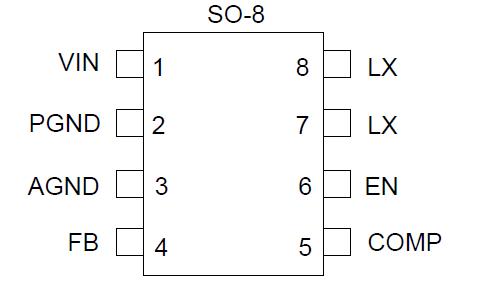

Connection Diagram

Specifications

Parameter	Units
Supply Voltage (VIN)	18V
LX to AGND	-0.7V to VIN+0.3V
EN to AGND	-0.3V to VIN+0.3V
FB to AGND	-0.3V to 6V
COMP to AGND	-0.3V to 6V
PGND to AGND	-0.3V to +0.3V
Junction Temperature (TJ)	+150°C
Storage Temperature (TS)	-65°C to +150°C

Description

The AOZ1014 is a high efficiency, simple to use, 5A buck regulator. The AOZ1014 works from a 4.5V to 16V input voltage range, and provides up to 5A of continuous output current with an output voltage adjustable down to 0.8V.

The AOZ1014 comes in SO-8 and DFN-8 packages and is rated over a -40°C to +85°C ambient temperature range.
