AOZ1013

Features: • 4.5V to 16V operating input voltage range• 50 m internal PFET switch for high efficiency: up to 95%• Internal soft start• Output voltage adjustable to 0.8V• 3A continuous output current• Fixed 500kHz PWM operation• Cycle-by-cycle current limit&...

product image

AOZ1013 Picture
See larger image
SeekIC No. : 004286003 Detail

AOZ1013: Features: • 4.5V to 16V operating input voltage range• 50 m internal PFET switch for high efficiency: up to 95%• Internal soft start• Output voltage adjustable to 0.8V•...

AOZ1013 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AOZ1013
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4.5V to 16V operating input voltage range
• 50 m internal PFET switch for high efficiency: up to 95%
• Internal soft start
• Output voltage adjustable to 0.8V
• 3A continuous output current
• Fixed 500kHz PWM operation
• Cycle-by-cycle current limit
• Short-circuit protection
• Thermal shutdown
• Small size SO-8 packages


Application

• Point of load dc/dc conversion
• PCIe graphics cards
• Set top boxes
• DVD drives and HDD
• LCD panels
• Cable modems
• Telecom/Networking/Datacom equipment


Pinout

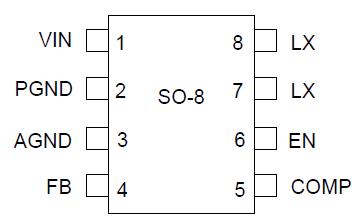

Connection Diagram


Specifications

Parameter Units
Supply Voltage (VIN) 18V
LX to AGND -0.7V to VIN+0.3V
EN to AGND -0.3V to VIN+0.3V
FB to AGND -0.3V to 6V
COMP to AGND -0.3V to 6V
PGND to AGND -0.3V to +0.3V
Junction Temperature (TJ) +150°C
Storage Temperature (TS) -65°C to +150°C
ESD Rating(3) 2kV



Description

The AOZ1013 is a high efficiency, simple to use, 3A buck regulator. The AOZ1013 works from a 4.5V to 16V input voltage range, and provides up to 3A of continuous output current with an output voltage adjustable down to 0.8V.

The AOZ1013 comes in SO-8 packages and is rated over a -40°C to +85°C ambient temperature range.
