AOD444L

Features: VDS (V) = 60VID = 12 ARDS(ON) < 60 m (VGS = 10V)RDS(ON) < 85 m (VGS = 4.5V)Specifications Parameter Symbol Maximum Units Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS ±20 V Continuous Drain Current G TC=25°C G ID 12 A TC=100°C B 12 Pulsed D...

product image

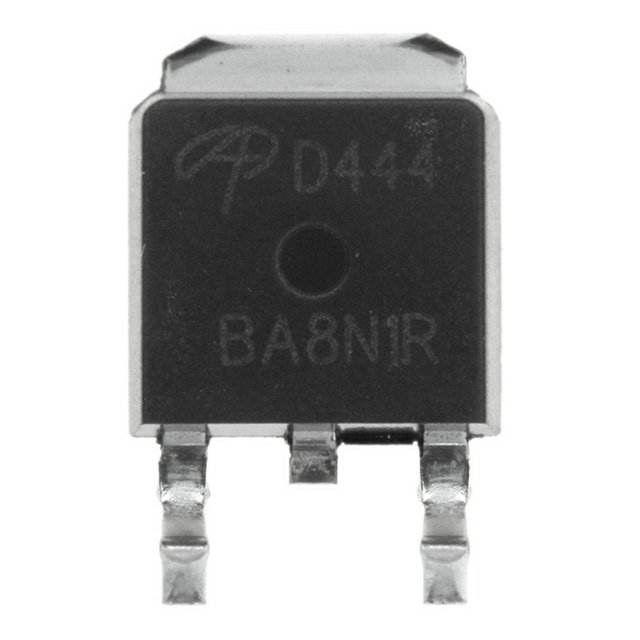

AOD444L Picture
See larger image
SeekIC No. : 004285908 Detail

AOD444L: Features: VDS (V) = 60VID = 12 ARDS(ON) < 60 m (VGS = 10V)RDS(ON) < 85 m (VGS = 4.5V)Specifications Parameter Symbol Maximum Units Drain-Source Voltage VDS 60 V Gate-Source Vo...

AOD444L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AOD444L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VDS (V) = 60V
ID = 12 A
RDS(ON) < 60 m (VGS = 10V)
RDS(ON) < 85 m (VGS = 4.5V)


Specifications

Parameter Symbol Maximum Units
Drain-Source Voltage VDS 60 V
Gate-Source Voltage VGS ±20 V
Continuous Drain Current G TC=25°C G ID 12 A
TC=100°C B 12
Pulsed Drain CurrentC IDM 30
Avalanche Current C IAR 12 A
Repetitive avalanche energy L=0.1mH C EAR 23 mJ
Power Dissipation B TC=25°C PD 20 W
TC=100°C 10
Power Dissipation A TA=25°C PDSM 2 W
TA=70°C 1.3
Junction and Storage Temperature Range TJ, TSTG -55 to 175 °C



Description

The AOD444L uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. AOD444L (Green Product) is offered in a lead-free package.
