Product Details

Description

Features:

V_DS (V) = 30V
I_D = 20A (V_GS = 10V)
R_DS(ON) < 9.5m (V_GS= 10V)
R_DS(ON) < 14.5m (V_GS = 4.5V)

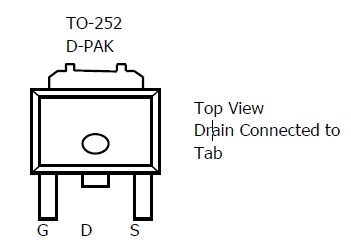

Pinout

Connection Diagram

Specifications

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	30	V
Gate-Source Voltage		V_GS	±20	V
Continuous Drain Current ^GF	T_C=25°C	I_D	20	A
	T_C=100°C		20
Pulsed Drain Current ^C		I_DM	80
Avalanche Current ^C		I_AR	25	A
Repetitive avalanche energy L=0.3mH C		E_AR	94	mJ
Power Dissipation ^B	TC=25°C	P_D	50	W
	TC=100°C		25
Power Dissipation ^A	TA=25°C	P_DSM	5.7	W
	TA=100°C		3.6
Junction and Storage Temperature Range		T_J,T_STG	-55 to 175	°C

Description

SRFETTM The AOD4112 uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent R DS(ON),and low gate charge. This device is suitable for use as a low side FET in SMPS, load switching and general purpose applications. Standard Product AOD4112 is Pb-free (meets ROHS & Sony 259 specifications).
