Part Number:: AOD406
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AOD400 evaluate
Features: `V DS (V) = 30V`ID = 10 A (VGS = 10V)`R DS(ON) < 30 m (VGS = 10V)`R DS(ON) < 36 m ...
AOD402 evaluate
Features: `V DS (V) = 30V`ID = 18 A (VGS = 20V)`R DS(ON) < 15 m (VGS = 20V)`R DS(ON) < 18 m ...
AOD403 evaluate
US $.3 - .68 / Piece

MOSFET P-CH -30V -85A TO-252

Product Details

Description

Features:

V_DS (V) = 30V
I_D= 85A (V_GS = 10V)
R_DS(ON) < 5.0m (V_GS= 10V)
R_DS(ON) < 5.7m (V_GS= 4.5V)

Pinout

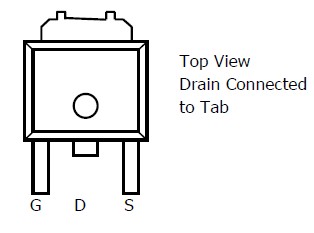

Connection Diagram

Specifications

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	30	V
Gate-Source Voltage		V_GS	±12	V
Continuous Drain Current ^GF	T_C=25°C	I_D	85	A
	T_C=100°C		75
Pulsed Drain Current ^C		I_DM	200
Avalanche Current ^C		I_AR	30	A
Repetitive avalanche energy L=0.3mH C		E_AR	140	mJ
Power Dissipation ^B	T_C=25°C	P_D	100	W
	T_C=100°C		50
Power Dissipation ^A	TA=25°C	P_DSM	2.5	W
	TA=100°C		1.6
Junction and Storage Temperature Range		T_J,T_STG	-55 to 175	°C

Description

The AOD406 uses advanced trench technology to provide excellent R _DS(ON), shoot-through immunity and body diode characteristics. This device is ideally suited for use as a low side switch in CPU core power conversion. Standard Product AOD406 is Pb-free (meets ROHS & Sony 259 specifications). AOD406L is a Green Product ordering option. AOD406 and AOD406L are electrically identical.
