AOB434

Features: VDS (V) =25VID = 55 A (VGS = 10V)R DS(ON) < 9.5 m (VGS = 10V)R DS(ON) < 15 m (VGS = 4.5V)PinoutSpecifications Parameter Symbol Maximum Units Drain-Source Voltage VDS 25 V Gate-Source Voltage VGS ±20 V Continuous DrainCurrent GF TC=25°C ...

product image

AOB434 Picture
See larger image
SeekIC No. : 004285876 Detail

AOB434: Features: VDS (V) =25VID = 55 A (VGS = 10V)R DS(ON) < 9.5 m (VGS = 10V)R DS(ON) < 15 m (VGS = 4.5V)PinoutSpecifications Parameter Symbol Maximum Units Drain-Source Voltage ...

AOB434 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AOB434
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VDS (V) =25V
ID = 55 A (VGS = 10V)
R DS(ON) < 9.5 m (VGS = 10V)
R DS(ON) < 15 m (VGS = 4.5V)

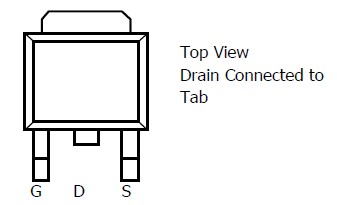

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Maximum
Units
Drain-Source Voltage
VDS
25
V
Gate-Source Voltage
VGS
±20
V
Continuous Drain
Current GF		 TC=25°C
ID
55
A
TC=100°C
55
Pulsed Drain Current C
IDM
100
Avalanche Current C
IAR
30
A
Repetitive avalanche energy L=0.3mH C
EAR
135
mJ
Power Dissipation B TC=25°C
PD
50
W
TC=100°C
25
Power Dissipation A TA=25°C
PDSM
3
W
TA=100°C
2.1
Junction and Storage Temperature Range
TJ,TSTG
-55 to 175
°C



Description

The AOB434 uses advanced trench technology and design to provide excellent R DS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. Standard product AOB434 is Pb-free (meets ROHS & Sony 259 specifications). AOB434L is a Green Product ordering option. AOB434 and AOB434L are electrically identical.
