Product Details

Description



Features:

VDS (V) = 40V
ID = 12 A (VGS = 10V)
R DS(ON) < 34 m (VGS = 10V)
R DS(ON) < 54 m (VGS = 4.5V)

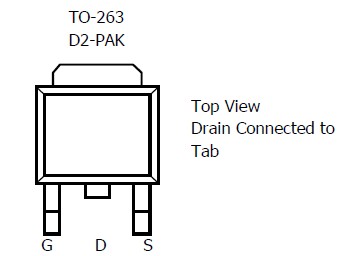

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Maximum
Units
Drain-Source Voltage
VDS
40
V
Gate-Source Voltage
VGS
±20
V
Continuous Drain
Current G
TC=25°C
ID
12
A
TC=100°C
11
Pulsed Drain Current C
IDM
30
Avalanche Current C
IAR
12
A
Repetitive avalanche energy L=0.1mH C
EAR
20
mJ
Power Dissipation B TC=25°C
PD
18
W
TC=100°C
9
Power Dissipation A TA=25°C
PDSM
2.3
W
TA=100°C
1.5
Junction and Storage Temperature Range
TJ,TSTG
-55 to 175
°C



Description

The AOB432 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. Standard Product AOB432 is Pb-free (meets ROHS & Sony 259 specifications). AOB432L is a Green Product ordering option. AOB432 and AOB432L are electrically identical.
