Product Details

Description



Features:

VDS (V) = 60V
ID = 12A (Vgs=10V)
R DS(ON) < 63 m (VGS =10V)
R DS(ON) < 85 m (VGS = 6V)

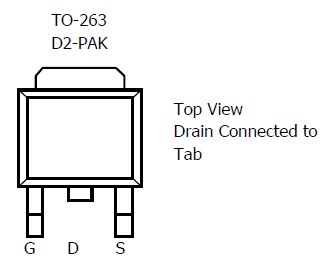

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Maximum
Units
Drain-Source Voltage
VDS
60
V
Gate-Source Voltage
VGS
±20
V
Continuous Drain
Current G		 TC=25°C
ID
12
A
TC=100°C
12
Pulsed Drain Current C
IDM
30
Avalanche Current C
IAR
12
A
Repetitive avalanche energy L=0.1mH C
EAR
23
mJ
Power Dissipation B TC=25°C
PD
50
W
TC=100°C
25
Power Dissipation A TA=25°C
PDSM
2
W
TA=100°C
1.3
Junction and Storage Temperature Range
TJ,TSTG
-55 to 175
°C



Description

The AOB430 uses advanced trench technology and design to provide excellent R DS(ON) with low gate charge. This device is suitable for use in high voltage synchronous rectification , load switching and general purpose applications. Standard product AOB430 is Pb-free (meets ROHS & Sony 259 specifications). AOB430L is a Green Product ordering option. AOB430 and AOB430L are electrically identical.
