AO8820

MOSFET DUAL N-CH 20V 7A 8-TSSOP

product image

AO8820 Picture
SeekIC No. : 003429871 Detail

AO8820: MOSFET DUAL N-CH 20V 7A 8-TSSOP

floor Price/Ceiling Price

Part Number:
AO8820
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Alpha & Omega Semiconductor Inc
FET Type: 2 N-Channel (Dual) FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 20V Current - Continuous Drain (Id) @ 25° C: 7A
Rds On (Max) @ Id, Vgs: 21 mOhm @ 7A, 10V Vgs(th) (Max) @ Id: 1V @ 250µA
Drain Current (Idss at Vgs=0) : 8 mA to 20 mA Gate Charge (Qg) @ Vgs: 12nC @ 4.5V
Input Capacitance (Ciss) @ Vds: 615pF @ 10V Power - Max: 1.5W
Mounting Type: Surface Mount Package / Case: 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 8-TSSOP

Description

FET Feature: Logic Level Gate
Mounting Type: Surface Mount
Series: -
FET Type: 2 N-Channel (Dual)
Drain to Source Voltage (Vdss): 20V
Vgs(th) (Max) @ Id: 1V @ 250µA
Package / Case: 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 8-TSSOP
Power - Max: 1.5W
Current - Continuous Drain (Id) @ 25° C: 7A
Gate Charge (Qg) @ Vgs: 12nC @ 4.5V
Packaging: Cut Tape (CT)
Manufacturer: Alpha & Omega Semiconductor Inc
Rds On (Max) @ Id, Vgs: 21 mOhm @ 7A, 10V
Input Capacitance (Ciss) @ Vds: 615pF @ 10V


Features:

·VDS (V) = 20V
·ID = 7A (VGS = 10V)
·RDS(ON) < 21mΩ (VGS = 10V)
·RDS(ON) < 24mΩ (VGS = 4.5V)
·RDS(ON) < 32mΩ (VGS = 2.5V)
·RDS(ON) <50mΩ (VGS = 1.8V)
·ESD Rating: 2000V HBM

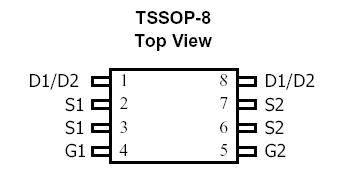

Pinout

  Connection Diagram




Specifications

Parameter
Symbol
Maximum
Units
Drain-Source Voltage
Gate-Source Voltage
VDS
VGS
20
±12
V
V
Continuous Drain
Current A
TC=25°C G
TC=70°C B
ID
7
5.5
A
Pulsed Drain CurrentB
IDM
25
Power Dissipation A
TC=25°C
TC=70°C

PD
1.5
0.96
W
Junction and Storage Temperature Range
TJ, TSTG
-55 to 175
°C





Description

The AO8820 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V while retaining a 12V VGS(MAX) rating. It is ESD protected. This device is suitable for use as a uni-directional or bidirectional load switch, facilitated by its common-drain configuration. Standard Product AO8820 is Pb-free (meets ROHS & Sony 259 specifications). AO8820L is a Green Product ordering option. AO8820 and AO8820L are electrically identical.






Parameters:

Technical/Catalog InformationAO8820
VendorAlpha & Omega Semiconductor Inc
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C7A
Rds On (Max) @ Id, Vgs21 mOhm @ 7A, 10V
Input Capacitance (Ciss) @ Vds 615pF @ 10V
Power - Max1.5W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs12nC @ 4.5V
Package / Case8-TSSOP
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AO8820
AO8820
785 1097 2 ND
78510972ND
785-1097-2
