AN8847SB

Features: ` Variable equalizer which meets CAV playbackwith 32 times speed or more.` Wide band RF amp. and AGC (fC = 30 MHz ormore (-3 dB))` Balance adjustment function built-inFocus error amp./tracking error amp.` CD-RW playback compatible. Variable gain Focus error amp./tracking error amp. (t...

product image

AN8847SB Picture
See larger image
SeekIC No. : 004285671 Detail

AN8847SB: Features: ` Variable equalizer which meets CAV playbackwith 32 times speed or more.` Wide band RF amp. and AGC (fC = 30 MHz ormore (-3 dB))` Balance adjustment function built-inFocus error amp./trac...

AN8847SB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AN8847SB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Variable equalizer which meets CAV playbackwith 32 times speed or more.
` Wide band RF amp. and AGC (fC = 30 MHz ormore (-3 dB))
` Balance adjustment function built-inFocus error amp./tracking error amp.
` CD-RW playback compatible.
Variable gain
Focus error amp./tracking error amp.
(to +16.9 dB)
` OFTR/BDO detection
` APC amp.


Application

· CD/CD-ROM drive


Pinout

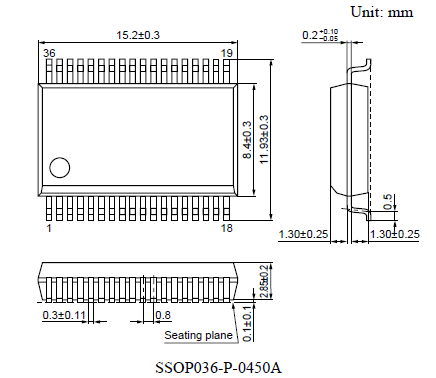

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply voltage R *1 VCCR 5.8 V
Supply voltage 1 *1 VCC1 5.8 V
Supply voltage 2 *1 VCC2 5.8 V
Supply current R *1 ICCR 97.1 mA
Supply current 1 *1 ICC1 7.4 mA
Supply current 2 *1 ICC2 2.43 mA
Power dissipation *1, *2 PD 403 mW
Operating ambient temperature *1 Topr -20 to +75 °C
Storage temperature *1 Tstg -55 to +125 °C
