Product Details

Description



Features:

• Provides deep 3-D sound with conventional 2-speaker system.
• The audio signal recorded through this IC can bereproduced with usual stereo system.
• Performs optimal processing to the sound sourcerecorded with surround-effect so as not to givedouble effects.
• Sound localization can be varied.
• A pseudo stereo effect for the monaural audio signalis achieved.
• Positions and moves each sound source on 270°arc in real time.
• An on-chip serial control bus (i.e., I2C) to varyspace-effect and change modes.


Application

• Televisions, videos, audio equipment, DVDs, personalcomputers, and game machines


Pinout

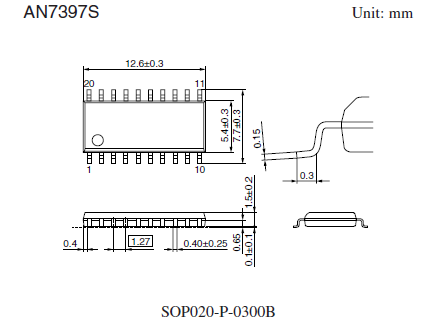

Connection Diagram




Specifications

Parameter Symbol Rating Unit
Supply voltage VCC 7.0 V
Supply current ICC 100 mA
Power dissipation *2 PD 230 mW
Operating ambient temperature *1 Topr -25 to +75 °C
Storage temperature *1 Tstg -55 to +150 °C
