AN7397K

Features: • Provides deep 3-D sound with conventional 2-speaker system.• The audio signal recorded through this IC can bereproduced with usual stereo system.• Performs optimal processing to the sound sourcerecorded with surround-effect so as not to givedouble effects.• Soun...

product image

AN7397K Picture
See larger image
SeekIC No. : 004285526 Detail

AN7397K: Features: • Provides deep 3-D sound with conventional 2-speaker system.• The audio signal recorded through this IC can bereproduced with usual stereo system.• Performs optimal proc...

AN7397K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AN7397K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Provides deep 3-D sound with conventional 2-speaker system.
• The audio signal recorded through this IC can bereproduced with usual stereo system.
• Performs optimal processing to the sound sourcerecorded with surround-effect so as not to givedouble effects.
• Sound localization can be varied.
• A pseudo stereo effect for the monaural audio signalis achieved.
• Positions and moves each sound source on 270°arc in real time.
• An on-chip serial control bus (i.e., I2C) to varyspace-effect and change modes.


Application

• Televisions, videos, audio equipment, DVDs, personalcomputers, and game machines


Pinout

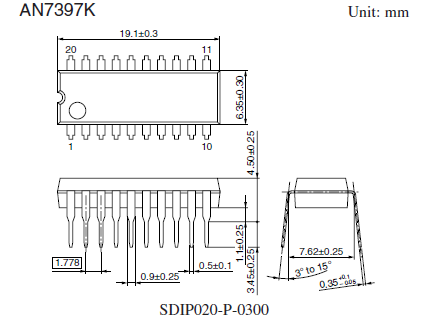

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply voltage VCC 7.0 V
Supply current ICC 100 mA
Power dissipation *2 PD 230 mW
Operating ambient temperature *1 Topr -25 to +75 °C
Storage temperature *1 Tstg -55 to +150 °C
