AMS3107

Features:

· Fixed and Adjustable Versions Available
· Output Current up to 500mA
· Very Low Quiescent Current
· Reverse Battery Protection
· Input-output Differential less than 0.6V
· Short Circuit Protection
· Internal Thermal Overload Protection
· Load Dump Protection
· Overvoltage Protection
· Mirror Image Insertion Protection
· ON/OFF Pin




Application

· Cellular Telephones
· Portable Consumer Equipment
· Portable (Notebook) Computers
· Battery Powered Systems
· Portable Instrumentation
· Radio Control Systems
· CD/DVD drives
· Automotive

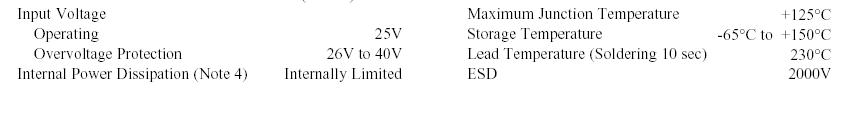

Specifications






Description

AMS3107 series consists of positive fixed and adjustable voltage regulators ideally suited for use in battery-powered systems. These devices feature very low quiescent current of 0.8mA or less when supplying 50mA loads. This unique characteristic and the extremely low input-output differential required for proper regulation (0.2V for output currents of 100mA) make the AMS3107 ideal to use for standby power systems. Internal circuitry of AMS3107 is protected from input fault conditions caused by reverse battery installation or input voltages that exceed maximum rated input voltage. During line transients, such as load dump (40V) when the input voltage to the regulator can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both internal circuits and the load. The AMS3107 series also includes internal current limiting, thermal shutdown, and is able to withstand temporary power-up with mirror-image insertion. The AMS3107 is offered in the 3-pin TO-92 package, SOT-89, SOT-223, TO-252 and 8 lead SOIC packages and operates over the industrial temperature range.
