Features: · Adjustable or Fixed Output 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V· Output Current of 1.5A· Low Dropout, 500mV at 1.5A Output Current· Fast Transient Response· Remote SenseApplication· High Current Regulators· Post Regulators for Switching Supplies· Adjustable Power Supply· Notebo...
AMS1501: Features: · Adjustable or Fixed Output 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V· Output Current of 1.5A· Low Dropout, 500mV at 1.5A Output Current· Fast Transient Response· Remote SenseApplicati...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: · ±4 mV (±0.3%) max. initial tolerance (A grade)· Operating Current 10mA to 20mA· Low Vo...
Features: ` ±20 mV (±0.3%) max. initial tolerance (A grade)` Operating Current 20mA to 20mA` Low V...
Features: · ±4 mV (±0.3%) max. initial tolerance (A grade)· Operating Current 10mA to 20mA· Low Vo...
VPOWER Input Voltage 7V
VCONTROL Input Voltage 13V
Operating Junction Temperature Range
Control Section0°C to 125°C
Power Transistor0°C to 150°C
Storage temperature- 65°C to +150°C
Soldering information
Lead Temperature (10 sec) 300°C
Thermal Resistance
TO-220 packageJA= 50°C/W
TO-263 package JA= 30°C/W*
* With package soldering to 0.5in2 copper area over backside ground plane or internal power plane JA can vary from 20°C/W to >40°C/W depending on mounting technique.
The The AMS1501 series of adjustable and fixed low dropout voltage regulators are designed to provide 1.5A output current to power the new generation of microprocessors. The dropout voltage of the device is 100mV at light loads and rising to 500mV at maximum output current. A second low current input voltage 1V or greater then the output voltage is required to achieve this dropout. The AMS1501 can also be used as a single supply device.
New features have been added to the AMS1501: a remote Sense pin is brought out virtually eliminating output voltage variations due to load changes. The typical load regulation, measured at the Sense pin, for a load current step of 100mA to 1.5A is less than 1mV.
The AMS1501 series has fast transient response. The Adjust pin is brought out on fixed devices. To further improve the transient response the addition of a small capacitor on the Adjust pin is recommended.
The AMS1501 series are ideal for generating power supplies of 2V to 3V where both 5V and 3.3V supplies are available.

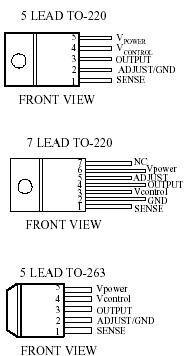

The AMS1501 devices are offered in 5 lead TO-220 and TO-263 (plastic DD) packages and in the 7 lead TO-220 package.
