Features: ` ±5 mV (±0.2%) Max. Initial Tolerance (A grade)` Wide Operating Current Range` Low Voltage Reference 2.5V` Max. 0.6 Dynamic Impedance (A grade)` Low Temperature CoefficientApplication· Power Supplies· Instrumentation· 8 Bit A/D, D/A Reference· Current Loop Measurement and Control System...

product image

AMS1009 Picture
SeekIC No. : 004284992 Detail

AMS1009: Features: ` ±5 mV (±0.2%) Max. Initial Tolerance (A grade)` Wide Operating Current Range` Low Voltage Reference 2.5V` Max. 0.6 Dynamic Impedance (A grade)` Low Temperature CoefficientApplication· Po...

floor Price/Ceiling Price

Part Number:
AMS1009
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ±5 mV (±0.2%) Max. Initial Tolerance (A grade)
` Wide Operating Current Range
` Low Voltage Reference 2.5V
` Max. 0.6 Dynamic Impedance (A grade)
` Low Temperature Coefficient





Application

· Power Supplies
· Instrumentation
· 8 Bit A/D, D/A Reference
· Current Loop Measurement and Control Systems
· Reference for 5V Systems





Pinout

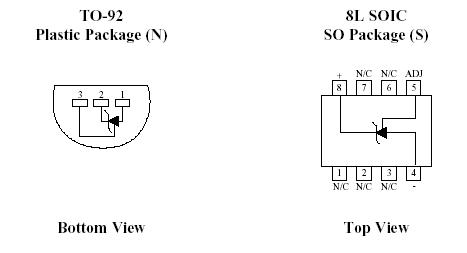

  Connection Diagram




Specifications

Reverse Current 20mA
Forward Current 10mA
Operating Temperature Range 0°C to 70°C
Storage temperature -55°C to +150°C
Soldering information
TO-92 package: 10 sec.260°C
SOIC package: Vapor phase (60 sec) 215°C
Infrared (15 sec.) 220°C





Description

The AMS1009 is a precision band-gap voltage reference diode. This voltage reference features a very low dynamic impedance and good temperature coefficient, operating over a wide current range of 400µA to 10mA. On-chip trimming is used to provide tight tolerance and minimize temperature drift. A third terminal allows the reference voltage to be adjusted to ±5% to calibrate out system errors.

The AMS1009 is used as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry, and the 2.5V make it easy to obtain a stable reference from 5V logic supplies.

The AMS1009 is available in TO-92 and SO-8 packages operating over a 0°C to 70°C temperature range.
