AMS04

Features: ` Low Temperature Coefficient` Wide Operating Current RangeAMS04.........15mA to 20mA AMS05.........20mA to 20mA` Max. 1W Dynamic Impedance` Typ. 2% Output toleranceApplication· Battery Powered Systems· Instrumentation· A/D, D/A Converters· Current sources· Power Supplies· Telecommunicat...

product image

AMS04 Picture
See larger image
SeekIC No. : 004284986 Detail

AMS04: Features: ` Low Temperature Coefficient` Wide Operating Current RangeAMS04.........15mA to 20mA AMS05.........20mA to 20mA` Max. 1W Dynamic Impedance` Typ. 2% Output toleranceApplication· Battery Po...

AMS04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AMS04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Temperature Coefficient
` Wide Operating Current Range
             AMS04.........15mA to 20mA
            AMS05.........20mA to 20mA
` Max. 1W Dynamic Impedance
` Typ. 2% Output tolerance


Application

· Battery Powered Systems
· Instrumentation
· A/D, D/A Converters
· Current sources
· Power Supplies
· Telecommunication


Pinout

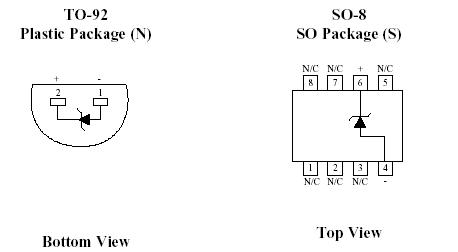

Connection Diagram


Specifications

Reverse Current                                                            30mA
Forward Current                                                            10mA
Operating Temperature Range                         0°C to 70°C
Storage temperature                                -55°C to +150°C
Soldering information
     TO-92 package: 10 sec.                                         260°C
     SOIC package: Vapor phase (60 sec)                    215°C
     Infrared (15 sec.)                                                   220°C


Description

The AMS04 and the AMS05 are two-terminal, band-gap voltage reference diodes, with an output voltage of 1.25V for the AMS04 and 2.5V for the AMS05. These devices feature low dynamic impedance and good temperature coefficient, operating over a wide current range. Since the band-gap reference of these devices uses only transistors and resistors, low noise and good long term stability result. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation. The AMS04 and AMS05 can be used for portable meters, regulators, data acquisition converters and telecommunication.

The AMS04 and AMS05 are operational over a temperature range of 0°C to 70°C and are available in TO-92 and SO-8 packages.
