Stable with only 0.22mF output Cap
Very Low Dropout Voltage
Guaranteed 150mA Output
Accurate to within 1.0%
50mA Quiescent Current
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Excellent PSRR (Typ. 70dB)
Power-Saving Shutdown Mode

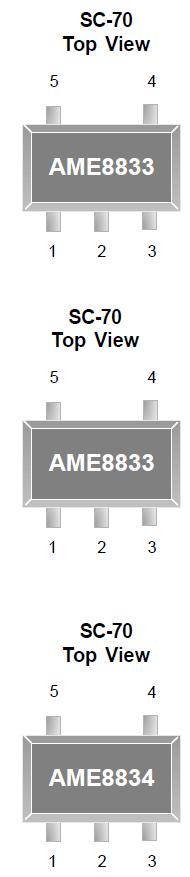

Ultra-small SC-70 and SOT-25-L Package
Factory Pre-set Output Voltages
Low Temperature Coefficient
Input Voltage Range (2V - 5.5V)
Cellular Phones
Instrumentation
Portable Electronics
Wireless Devices
Cordless Phones
PC Peripherals
Battery Powered Widgets
Electronic Scales
Cameras
Parameter | Maximum | Unit |
Input Voltage | 6 | V |
Output Current | PD / (VIN - VO) | mA |
Output Voltage | GND - 0.3 to VIN + 0.3 | V |
ESD Classification | B |
The AME8833/8834 of positive, linear regulators feature blow quiescent current (50A typ.) low dropout voltage and excellent PSRR, thus making them ideal for Telecommunications and other battery applications. The ultra- small SC-70 package is attractive for "Pocket" and "Hand Held" applications.
AME8834,s output voltage can be adjusted with an external resister divider.
These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the "Worst" of operating conditions.
As an additional feature, the AME8833/8834 is stable with an output capacitance of just extended 0.22mF or greater.
