AMC7580

Features: ·Input-Output differential of typical 500mV at 7A and low quiescent current·Output current is excess of 7A·Remote sense pin available·Reverse battery protection·Short circuit protection·Internal thermal overload protection·Available in 5L plastic TO-220 and surface mount 5L TO-263 packag...

product image

AMC7580 Picture
See larger image
SeekIC No. : 004284609 Detail

AMC7580: Features: ·Input-Output differential of typical 500mV at 7A and low quiescent current·Output current is excess of 7A·Remote sense pin available·Reverse battery protection·Short circuit protection·In...

AMC7580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AMC7580
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Input-Output differential of typical 500mV at 7A and low quiescent current
·Output current is excess of 7A
·Remote sense pin available
·Reverse battery protection
·Short circuit protection
·Internal thermal overload protection
·Available in 5L plastic TO-220 and surface mount 5L TO-263 packages
·Pin assignment identical to EZ1585 series.


Application

·Pentium® Processor Supplies
·PowerPCTM Supplies
·Computer Add-On Cards
·Other Applications Requiring Low Dropout Voltage Over Rated Current.


Pinout

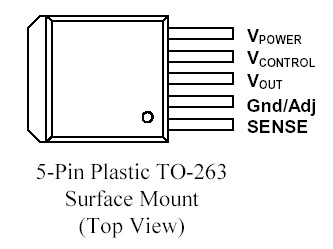

Connection Diagram


Specifications

Input Voltage (Vpower)
Input Voltage (Vcontrol)
Operating Junction temperature
Storage Temperature Range
Lead temperature (Soldering, 10 seconds)		 7V
13V
150 °C
-65 °C to 150 °C
300 °C
Note 1: Exceeding these ratings could cause damage to the device. All voltages are with respect to Ground. Currents are positive into, negative out of the specified terminal.



Description

The AMC7580 is a high performance low dropout regulator rated for 7A output current with fixed 2.5V/3.3V/5.0V and adjustable output. It is designed for use in applications requiring low dropout characteristics over the rated current range.

When the second low-current input voltage is applied, the drop out voltage can be as low as 100mV at light loads and up to 500mV at maximum output current. On chip trimming adjusts the reference voltage to 1%. These features are ideal for low voltage microprocessor applications requiring a regulated 2.5V to 3.6V power supply.

In addition, the AMC7580 provides the device protections including over current and thermal shutdown. The AMC7580 series are ideal to the next generation microprocessor on motherboards where both 5V and 3.3V are available.
