AMC5902

Features: Designed by advanced BiCMOS process, low power and low chip temperature. Patented package to reduce chip temperature. 3 BTL drivers, 2 PWM drivers and 3 phase spindle motor driver. Built-in triangular-wave generator. 0 to 5V wide voltage range for input pins Thermal shutdown with 30°C h...

product image

AMC5902 Picture
See larger image
SeekIC No. : 004284598 Detail

AMC5902: Features: Designed by advanced BiCMOS process, low power and low chip temperature. Patented package to reduce chip temperature. 3 BTL drivers, 2 PWM drivers and 3 phase spindle motor driver. Built-...

AMC5902 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AMC5902
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Designed by advanced BiCMOS process, low power and low chip temperature.
  Patented package to reduce chip temperature.
  3 BTL drivers, 2 PWM drivers and 3 phase spindle motor driver.
  Built-in triangular-wave generator.
  0 to 5V wide voltage range for input pins
  Thermal shutdown with 30°C hysteresis.
  Built-in current limit, hall bias,short brake, FOUT output and reverse protection circuit.


Application

  CD-RW, DVD-RW
  CD-ROM, DVD, DVD-ROM
  Optical Disc Related Systems.

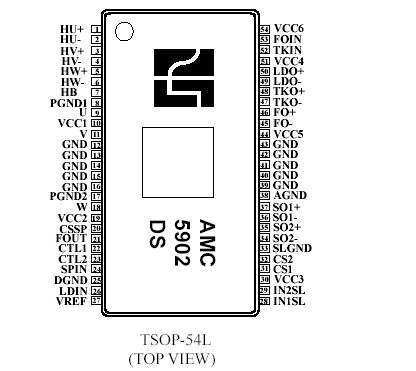

Pinout

Connection Diagram


Specifications

ABSOLUTE MAXIMUM RATINGS (Note 1)
Parameter Symbol Limits Unit
POWER MOS power supply voltage VCC1,VCC2,CS1,CS2 15 V
Preblock/BTL powerblock power supply voltage VCC3,VCC4,VCC5 15 V
PWM control blockpower supply voltage VCC6 7 V
Operating junction temperature Tj 150 °C
Storage temperature range Tstg -40 to 150 °C
Lead Temperature (soldering, 10 seconds)   260 °C
Note 1: Exceeding these ratings could cause damage to the device. All voltages are with respect to Ground. Currents are positive into, negative out of the specified terminal.



Description

The AMC5902 is a monolithic chip with 6 channel motor drivers designed by advanced BiCMOS process technology.
The AMC5902 contains 3 BTL drivers,2 PWM drivers and a 3-phase spindle motor driver.

The AMC5902 is the best fit for modern optical disk driver system which has spindle motor and all actuators.

The AMC5902 contains a direct PWM control system for spindle and two slide channels drive thus that the total power
consumption can be reduced. Besides, voltage supplies for spindle, slide, focus/tracking and loading can be set separately.

Further more, the two control modes -ON/OFF of loading, FOUT amplifier, brake mode select of spindle driver, standy
mode, thermal shut down circuit are internally designed in. These features make the AMC5902 an ideal device for optical disc related systems.
