Product Details

Description



Features:

` Large DC voltage gain (typical 100 dB)
` Wide bandwidth (typical 1MHz)
` Operated by either single supply or dual supplies
` High accuracy output voltage
` Low input offset voltage (typical 2mV)
` Large output voltage swing: 0V to VCC 1.5V
` Low dropout voltage
` Input common-mode voltage range includes ground
` Low supply current drain
` Pin assignment identical to earlier LM358 series




Application

· General Purpose Amplifiers
· Pulse Generator
· Square Wave Oscillator
· Low Drift Peak Detector
· Voltage Controlled Oscillator (VCO)
· Filters

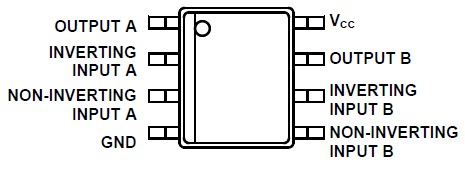

Pinout

Connection Diagram




Specifications

Input Supply Voltage 32V
Input Voltage -0.3V to 30V
Differential Input Voltage 32V
Operating Junction Temperature Range, TJ 0 to 150
Storage Temperature Range-65 to 150
Lead Temperature (soldiering, 10 seconds) 260




Description

The AMC358 series is designed containing two independent, high gain operational amplifiers. It can operate from a single power supply over a wide range from 4.5V to 30V.

Not only it can be used in all conventional operation amplifiers circuits in single power supply systems, the AMC358 series is also ideal for transducer amplifiers, DCgain blocks and etc. In addition, without the need of ±15V dual power supply voltages, the AMC358 series can be directly operated from the 5V power supply voltage which is also used for digital systems.
