Features:

` High Efficiency: Up to 96%
` 600mA Output Current at VIN=3V
` 2.5V to 5.5V Input Voltage Range
` 1.5MHz Constant Switching Frequency
` No Schottky Diode Required
` 100% Duty Cycle as Low Dropout Operation
` 0.6V Reference Voltage Allows 0.6V Minimum Output Voltage
` <1A Shutdown Mode Supply Current
` Current Mode Operation for Excellent Line and Load Transient Response
` Over-temperature Protected
` 4KV HBM ESD Protection
` 5-Pin Thin SOT-23 package


Application

· PDA, Personal Media Player
· Smart Phone
· Digital Still Camera, Video Camcorder
· Portable Instruments
· Bluetooth Headset


Pinout

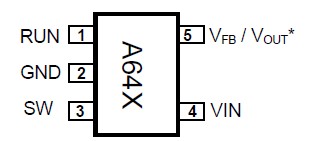

Connection Diagram


Specifications

Input Voltage, VIN                                             -0.3V to 6V
RUN, VFB Voltage                                              -0.3V to VIN
SW Voltage                                                       -0.3 to VIN+0.3V
P-Channel Switch Source Current (DC)              800mA
N-Channel Switch Sink Current (DC)                  800mA
Peak SW Sink and Source Current                     1.3A
Operating Temperature Range (Note 2)             -40 to 85
Junction Temperature, TJ(Note 3)                     125
Storage Temperature Range                              -60 to 150
Lead Temperature (soldering, 10 seconds)         300

Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.
Note 2: The AMC3100 is guaranteed to meet performance specifications from 0°C to 70°C. Specifications over the 40°C to 85°C operating temperature range are assured by design, characterization and correlation with statistical process controls.
Note 3: TJ is calculated from the ambient temperature TA and power dissipation PD according to the following formula: TJ = TA + (PD x JA).


Description

The AMC3100 is a high efficiency synchronous buck DC/DC converter using a constant frequency, current mode architecture. Adjustable version and fixed output voltages of 1.2V, 1.5V and 1.8V are available. 300uA low supply current at no load and <1A supply current at shutdown. The 2.5V to 5.5V input voltage range makes the AMC3100 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.

Switching frequency is internally set at 1.5MHz, allowing using small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage.

The AMC3100 is available in a low profile (1mm) Thin SOT-23-5L package.
