AM29F200BB-70

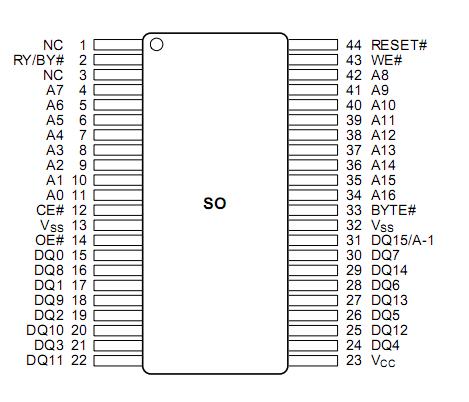

Pinout




Specifications

Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . . .55°C to +125°C
Voltage with Respect to Ground
        VCC (Note 1)  . . . . . . . . . . . . . . . .2.0 V to +7.0 V
        A9, OE#, and RESET# (Note 2). .2.0 V to +12.5 V
        All other pins (Note 1)  . . . . . . . . .0.5 V to +7.0 V
Output Short Circuit Current (Note 3)  . . . . . .  200 mA


Description

The AM29F200BB-70 is a 2 Mbit, 5.0 Volt-only Flash memory organized as 262,144 bytes or 131,072 words. The 8 bits of data appear on DQ0DQ7; the 16 bits on DQ0DQ15. The Am29F200B is offered in 44-pin SO and 48-pin TSOP packages. The device is also available in Known Good Die (KGD) form. For more information, refer to publication number 21257. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be reprogrammed in standard EPROM programmers.

AM29F200BB-70 is manufactured using AMD's 0.32 µm process technology, and offers all the features and benefits of the Am29F200A, which was manufactured using 0.5 µm process technology.
