AM29DL642G

Features: Data Management Software (DMS) - AMD-supplied software manages data programming, enabling EEPROM emulation - Eases historical sector erase flash limitations Supports Common Flash Memory Interface (CFI) Erase Suspend/Erase Resume - Suspends erase operations to allow reading from other se...

product image

AM29DL642G Picture
See larger image
SeekIC No. : 004282235 Detail

AM29DL642G: Features: Data Management Software (DMS) - AMD-supplied software manages data programming, enabling EEPROM emulation - Eases historical sector erase flash limitations Supports Common Flash Memory I...

AM29DL642G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AM29DL642G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Data Management Software (DMS)
   - AMD-supplied software manages data programming,
       enabling EEPROM emulation
   - Eases historical sector erase flash limitations
Supports Common Flash Memory Interface (CFI)
Erase Suspend/Erase Resume
   - Suspends erase operations to allow reading from
       other sectors in same bank
Data# Polling and Toggle Bits
   - Provides a software method of detecting the status of
       program or erase cycles
Unlock Bypass Program command
   - Reduces overall programming time when issuing
       multiple program command sequences


Pinout

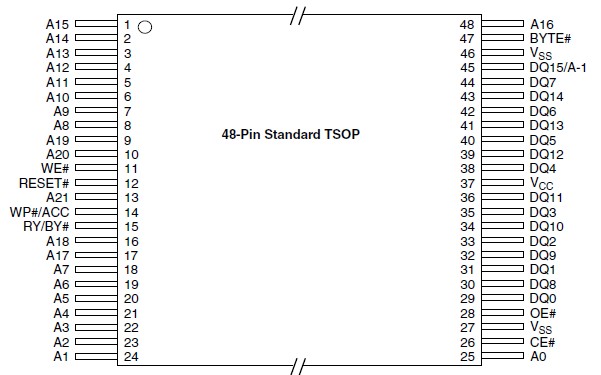

Connection Diagram


Specifications

Storage Temperature Plastic Packages . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . ................ .. 65°C to +125°C
Voltage with Respect to Ground
   VCC (Note 1) . . . . . . . . . . . . . . . .................... .0.5 V to +4.0 V
   A9, OE#, and RESET# (Note 2). . . . . .. . . .... .0.5 V to +12.5 V
   WP#/ACC . . . . . . . . . . . . . . . . ..................... .0.5 V to +10.5 V
   All other pins (Note 1) . . . . . ................... 0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . . . . .................... 200 mA


Description

The AM29DL642G is a 128 Mbit, 3.0 Volt (2.7 V to 3.6 V) that combines two Am29DL640G single power supply flash memory devices in a single 63-ball Fortified BGA package. Each Am29DL640G is a 64 Mbit, 3.0 Volt (2.7 V to 3.6 V) device organized as 4,194,304 words. Data appears on DQ15-DQ0. The device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The Am29DL642G is equipped with two CE# inputs for flexible selection between the two internal 64 Mb devices. The device can also be programmed in standard EPROM programmers.

The AM29DL642G offers an access time of 70 or 90 ns. To eliminate bus contention the Am29DL642G device has two separate chip enables (CE# and CE2#). Each chip enable (CE# or CE2#) is connected to only one of the two dice in the Am29DL642G package.
