Product Details

Description



Features:

`State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus Design for 2.5-V and 3.3-V Operation and Low Static-Power Dissipation
`Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V VCC)
`Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
`High Drive (32/64 mA at 3.3-V VCC)
`Ioff and Power-Up 3-State Support Hot Insertion
`Use Bus Hold on Data Inputs in Place of External Pullup/Pulldown Resistors to Prevent the Bus From Floating
`Flow-Through Architecture Facilitates Printed Circuit Board Layout
`Distributed VCC and GND Pins Minimize High-Speed Switching Noise
`Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II




Pinout

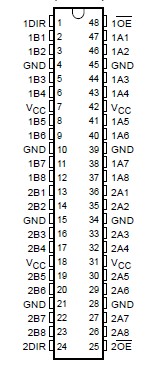

  Connection Diagram


Specifications

Supply voltage range, VCC 0.5 V to 4.6 V
Input voltage range, VI (see Note 1) 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO (see Note 1) 0.5 V to 7 V
Output current in the low state, IO: SN54ALVTH16245
SN74ALVTH16245
96 mA
128 mA
Output current in the high state, IO: SN54ALVTH16245
SN74ALVTH16245
48 mA
64 mA
Input clamp current, IIK (VI < 0) 50 mA
Output clamp current, IOK (VO < 0) 50 mA
Package thermal impedance, JA (see Note 2): DGG package
DGV package
DL package
GQL package
70/W
58/W
63/W
42/W
Storage temperature range, Tstg −65 to 150

NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51-7.



Description

The 'ALVTH16245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

ALVTH16245 devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

ALVTH16245 devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

When VCC is between 0 and 1.2 V, ALVTH16245 devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
