ALD14H

General Purpose / Industrial Relays RELAY POWER SLIM 3A 4.5VDC PCB

product image

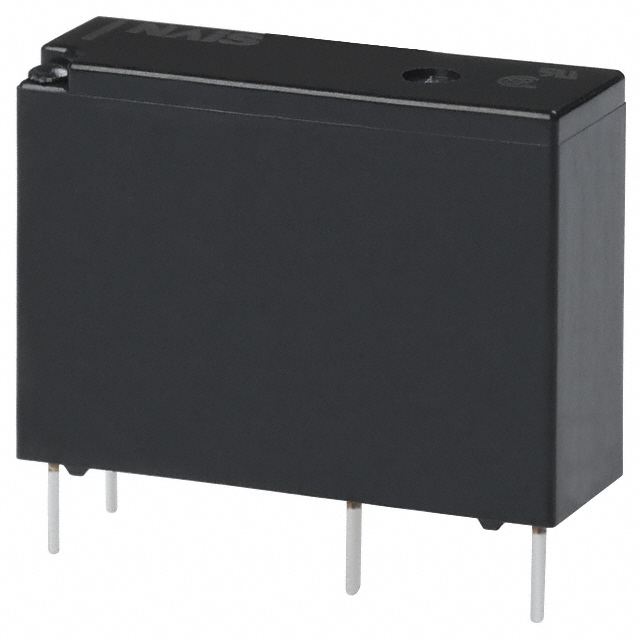

ALD14H Picture
See larger image
SeekIC No. : 002549691 Detail

ALD14H: General Purpose / Industrial Relays RELAY POWER SLIM 3A 4.5VDC PCB

ALD14H Data Sheet

floor Price/Ceiling Price

US $ .88~1.26 / Piece | Get Latest Price
Part Number:
ALD14H
Mfg:
Panasonic Electric Works
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~50
  • 50~100
  • Unit Price
  • $1.26
  • $1.15
  • $1.03
  • $.88
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Contact Form : 1 Form A (SPST-NO) Coil Voltage : 4.5 VDC
Coil Resistance : 101 Ohms Coil Current : 44.6 mA
Mounting Style : SMD/SMT Contact Material : Silver Nickel

Description

Contact Current Rating :
Switching Voltage :
Mounting Style : SMD/SMT
Contact Form : 1 Form A (SPST-NO)
Contact Material : Silver Nickel
Coil Voltage : 4.5 VDC
Coil Resistance : 101 Ohms
Coil Current : 44.6 mA


Features:

1. Slim type: Width 7 mm .276 inch.20.3(L)×7.0(W)×15.0(H) mm.799(L)×.276(W)×.591(H) inch
2. Perfect for small load switching of home appliances 105 switching operations possible with a 3A 250V AC resistive load.
3. Low operating power Compact size, nominal operating power as low as 200mW.
4. High shock resistance The relay withstands a functional shock resistance of 300m/s2 [approx. 30 G more]
5. High insulation resistance
• Creepage distance and clearances between contact and coil: Min. 6 mm .236 inch(In compliance with IEC65)
• Surge withstand voltage between contact and coil: 10,000 V or more.
6. UL/CSA, VDE, TÜV approved.




Application

• Air conditioner
• Refrigerator
• Hot water units
• Microwave ovens
• Fan heaters
