Features:

·  512 x9-bit cell array (AL4CS211)
·  1,024 x9-bit cell array (AL4CS221)
·  2,048 x9-bit cell array (AL4CS231)
·  4,096 x9-bit cell array (AL4CS241)
·  8,192 x9-bit cell array (AL4CS251)
·  100/133 MHz Operation
·  10/7.5 ns read/write cycle time
·  Independent Read and Write operations
·  Empty and Full flags support
·  Programmable Almost-Empty and Almost-Full flags
·  Output enable (data skipping)
·  3.3V power supply with 5V tolerant
·  Available in a 32-pin Thin Quad Flat Pack (TQFP) and 32-pin plastic leaded chip carrier (PLCC) packages



Application

·  Routers
·  ATM switches
·  Cable modems
·  Wireless base stations
·  SONET(Synchronous Optical Network) multiplexers
·  Multimedia systems
·  Time base correction (TBC)



Pinout

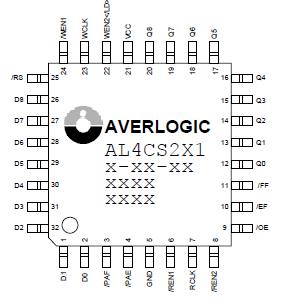

  Connection Diagram


Specifications

Symbol
Parameter
3.3V Rating
Unit
VDD
Supply Voltage
-0.3 ~ +3.8
V
VP
Pin Voltage
-0.3 ~ +(VDD+0.3)
V
IO
Output Current
-20 ~ +20
mA
TAMB
Ambient Op. Temperature
0 ~ +85
°C
Tstg
Storage temperature
-40 ~ +125
°C



Description

The AL4CS211/AL4CS221/AL4CS231/AL4CS241/AL4CS251 series memory products are highperformance,low-power 9-bit read/write FIFO (First-In-First-Out) memory chips. They are specially designed to buffer high speed streaming data for a wide range of communication applications, such as optical disk controllers, Local Area Networks (LANs), SONET (Synchronous Optical Network).

The input data is synchronous with a free-running clock (WCLK), and input-enable pins (/WEN1,/WEN2). Data of AL4CS211/AL4CS221/AL4CS231/AL4CS241/AL4CS251 is written into the FIFO on every clock when enable pins are asserted. The output is synchronous with the other free-running clock (RCLK) and enables (/REN1, /REN2). An Output Enable pin (/OE) is provided at the read port for tri-state control of the output port. The FIFOs can output two fixed flags, Empty Flag( /EF) and Full Flag (/FF), and two programmable flags, Almost- Empty (/PAE) and Almost-Full (/PAF). The offsets of the /PAE and /PAF flags are loaded when Load pin (/LD) goes low.
