AL4CE241

Features: · High performance, low-power, FIFO(First-In First-Out) memory· 512 x 9 bit I/O port (AL4CE211)· 1K x 9 bit 1/O port (AL4CE221)· 2K x 9 bit I/O port (AL4CE231)· 4K x 9 bit I/O port (AL4CE241)· 8K x 9 bit I/O port (AL4CE251)· High clock speed (133MHz)· Fully independent read/write access·...

product image

AL4CE241 Picture
See larger image
SeekIC No. : 004279628 Detail

AL4CE241: Features: · High performance, low-power, FIFO(First-In First-Out) memory· 512 x 9 bit I/O port (AL4CE211)· 1K x 9 bit 1/O port (AL4CE221)· 2K x 9 bit I/O port (AL4CE231)· 4K x 9 bit I/O port (AL4CE2...

AL4CE241 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AL4CE241
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High performance, low-power, FIFO(First-In First-Out) memory
· 512 x 9 bit I/O port (AL4CE211)
· 1K x 9 bit 1/O port (AL4CE221)
· 2K x 9 bit I/O port (AL4CE231)
· 4K x 9 bit I/O port (AL4CE241)
· 8K x 9 bit I/O port (AL4CE251)
· High clock speed (133MHz)
· Fully independent read/write access
· Retransmit the data (reread the data)
· Empty, Full, and programmable Almost Empty, Almost Full flags
· Output enable control (data skipping)
· 3.3V power with 5V signal tolerant input
· Standard 32-pin TQFP


Application

- Multimedia System
- ATM Switches
- Routers
- Cable Modems
- Wireless Base Stations
- SONET(Synchronous Optical Network) Multiplexers
- TBC(Time Base Corrector)
- Hard Disk cache memory


Pinout

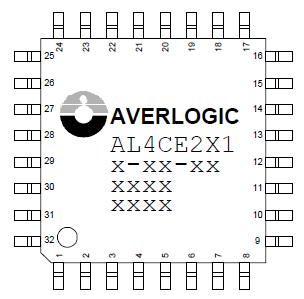

Connection Diagram


Description

The AL4CE2x1 series memory products are high-performance, low-power 9bit read/write FIFO (First-In-First-Out) memory chip designed to buffer high speed streaming data for a wide range of applications. The  FIFO memories are the advanced version of AL4CS2x1. Retransmit is supported in this product series to reduce designing efforts.
