AK93C65A

Features:

ADVANCED CMOS EEPROM TECHNOLOGY
READ/WRITE NON-VOLATILE MEMORY
WIDE VCC OPERATION
Vcc = 1.8V  5.5V
AK93C45A    1024 bits, 64   16 organization
AK93C55A    2048 bits, 128  16 organization
AK93C65A    4096 bits, 256  16 organization
AK93C75A    8192 bits, 512   16 organization
SERIAL INTERFACE
  Interfaces with popular microcontrollers and standard microprocessors
LOW POWER CONSUMPTION
  0.5mA max. Read Operation
  0.8
A Max. Standby
HIGH RELIABILITY
  Endurance : 100K cycles
  Data Retention : 10 years
Automatic address increment (READ)
Automatic write cycle time-out with auto-ERASE
Busy/Ready status signal
 Software controlled write protection
IDEAL FOR LOW DENSITY DATA STORAGE
   Low cost, space saving, 8-pin package

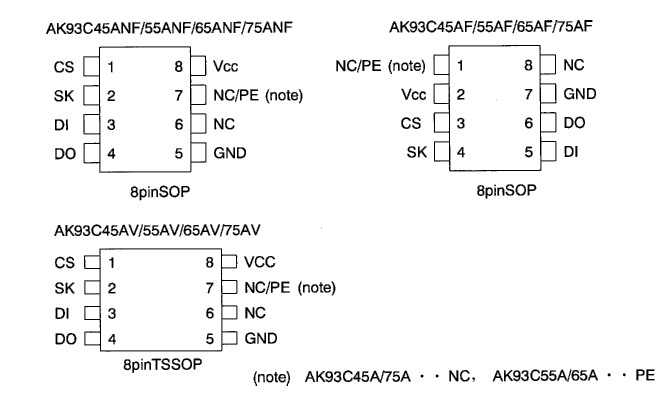

Pinout




Specifications

Parameter	Symbol	Min	Max	Unit
Power Supply	VCC	-0.6	+7.0	V
All Input Voltages with Respect to Ground	VIO	-0.6	VCC+0.6	V
Ambient storage temperature	Tst	-65	+150

Description

The AK93C45A/55A/65A/75A is a 1024/2048/4096/8192-bit serial CMOS EEPROM divided into 64/128/256/512 registers of 16 bits each.The AK93C45A/55A/65A/75A has 4 instructions such as READ, WRITE, EWEN and EWDS. Those instructions control the AK93C45A/55A/65A/75A.The AK93C45A/55A/65A/75A can operate full function under wide operating voltage range from 1.8V to 5.5V. The charge up circuit is integrated for high voltage generation that is used for write operation.A serial interface of AK93C45A/55A/65A/75A, consisting of chip select (CS), serial clock (SK), data-in (DI) and data-out (DO), can easily be controlled by popular microcontrollers or standard icroprocessors. AK93C45A/55A/65A/75A takes in the write data from data input pin (DI) to a register synchronously with rising edge of input pulse of serial clock pin (SK). And at read operation, AK93C45A/55A/65A/75A takes out the read data from a register to data output pin (DO) synchronously with rising edge of SK.The DO pin is usually in high impedance state. The DO pin outputs "L" or "H" in case of data output or Busy/Ready signal output.Software and Hardware controlled write protection When Vcc is applied to the part, the part automatically powers up in the ERASE/WRITE Disable state. In the ERASE/WRITE disable state, execution of WRITE instruction is disabled. Before WRITE instruction is executed, EWEN instruction must be executed.

The ERASE/WRITE enable state continues until EWDS instruction is executed or Vcc is removed from the part.Execution of a read instruction is independent of both EWEN and EWDS instructions.The PE is internally pulled up to VCC. If the PE is left unconnected, the part will accept WRITE, EWEN and EWDS instructions. AK93C45A/55A/65A/75A Busy/Ready status signal After a write instruction, the DO output serves as a Busy/Ready status indicator. After the falling edge of the CS initiates the self-timed programming cycle, the DO indicates the Busy/Ready status of the chip if the CS is brought high after a minimum of 250ns (Tcs). DO=logical "0" indicates that programming is still in progress.DO=logical "1" indicates that the register at the address specified in the instruction has been written with the new data pattern contained in the instruction and the part of AK93C45A/55A/65A/75A is ready for a next instruction.The Busy/Ready status indicator is only valid when CS is active (high). When CS is low, the DO output goes into a high impedance state.The Busy/Ready signal outputs until a start bit (Logic"1") of the next instruction is given to the part.
