AK93C55B

Features:

ADVANCED CMOS EEPROM TECHNOLOGY
READ/WRITE NON-VOLATILE MEMORY
WIDE VCC OPERATION
Vcc = 1.8V  5.5V
AK93C45B    1024 bits, 64  16 organization
AK93C55B    2048 bits, 128   16 organization
AK93C65B    4096 bits, 256   16 organization
AK93C75B    8192 bits, 512   16 organization
SERIAL INTERFACE
   Interfaces with popular microcontrollers and standard microprocessors
 LOW POWER CONSUMPTION
   0.8 A Max. Standby
HIGH RELIABILITY
  Endurance : 100K cycles
  Data Retention : 10 years
Automatic address increment (READ)
Automatic write cycle time-out with auto-ERASE
Busy/Ready status signal
Software controlled write protection
IDEAL FOR LOW DENSITY DATA STORAGE
 Low cost, space saving, 8-pin package (MSOP)

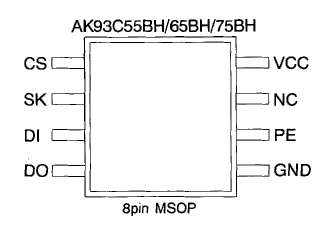

Pinout

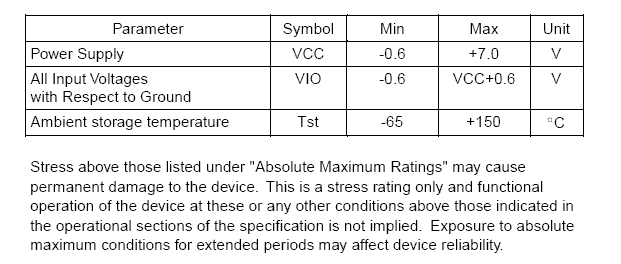

Specifications




Description

The AK93C45B/55B/65B/75B is a 1024/2048/4096/8192-bit serial CMOS EEPROM divided into 64/128/256/512 registers of 16 bits each.
The AK93C45B/55B/65B/75B has 4 instructions such as READ, WRITE, EWEN and EWDS. Those instructions control the AK93C45B/55B/65B/75B.
The AK93C45B/55B/65B/75B can operate full function under wide operating voltage range from 1.8V to 5.5V. The charge up circuit is integrated for high voltage generation that is used for write operation.
A serial interface of AK93C45B/55B/65B/75B, consisting of chip select (CS), serial clock (SK), data-in (DI) and data-out (DO), can easily be controlled by popular microcontrollers or standard microprocessors.AK93C45B/55B/65B/75B takes in the write data from data input pin (DI) to a register synchronously with rising edge of input pulse of serial clock pin (SK). And at read operation, AK93C45B/55B/65B/75B takes out the read data from a register to data output pin (DO) synchronously with rising edge of SK.
The DO pin is usually in high impedance state. The DO pin outputs "L" or "H" in case of data output or Busy/Ready
signal output.
Software and Hardware controlled write protection. When Vcc is applied to the part, the part automatically powers up in the ERASE/WRITE Disable state. In the ERASE/WRITE disable state, execution of WRITE instruction is disabled. Before WRITE instruction is executed, EWEN instruction must be executed. The ERASE/WRITE enable state continues until EWDS instruction is executed or Vcc of AK93C45B/55B/65B/75B is removed from the part.
Execution of a read instruction is independent of both EWEN and EWDS instructions. The PE is internally pulled up to VCC. If the PE is left unconnected, the part will accept WRITE, EWEN and EWDS instructions.  AK93C45B/55B/65B/75B Busy/Ready status signal
After a write instruction, the DO output serves as a Busy/Ready status indicator. After the falling edge of the CS initiates the self-timed programming cycle, the DO indicates the Busy/Ready status of the chip if the CS is brought high after a minimum of 250ns (Tcs). DO=logical "0" indicates that programming is still in progress. DO=logical "1" indicates that the register at the address specified in the instruction has been written with the new data pattern contained in the instruction and the part is ready for a next instruction.
The Busy/Ready status indicator is only valid when CS is active (high). When CS of AK93C45B/55B/65B/75B is low, the DO output goes into a high impedance state. The Busy/Ready signal outputs until a start bit (Logic"1") of the next instruction is given to the part.
