Product Details

Description



Features:

DSP:
   - Word length: 24-bit (Data RAM)
   - Instruction cycle time: 40.69ns (512fs, fs=48kHz)
   - Multiplier: 24 x 16  40-bit
   - Divider: 24 / 24 16-bit
   - ALU: 34-bit arithmetic operation (Overflow margin: 4bit)
   - 24-bit arithmetic and logic operation
   - Shift+Register: 1, 2, 3, 4, 8 and 15 bits shifted left
   - 1, 2, 3, 4, 8 and 15 bits shifted right
   - Other numbers in parentheses are restricted. Provided with indirect shift function
   - Program RAM: 448 x 32-bit
   - Coefficient RAM: 384 x 16-bit
   - Data RAM: 256 x 24-bit
   - Offset RAM: 48 x 20-bit
   - External Memory: Up to16Mbit DRAM or up to 1Mbit SRAM
   - Sampling frequency: 32kHz to 48kHz
   - Serial interface port for micro-controller
   - Master clock: 512fs, 384fs, 256fs
   - Master/Slave operation
   - Serial signal input port ( 2 to 6 ch ): 16/20/24-bit : Output port ( 4 to 8 ch ): 24-bit
   - Self-boot function using 32kbit E2PROM AK93C95A
ADC: 2 channels
   - 20-bit 64x Over-sampling delta sigma
   - DR, S/N : 98dB
   - S/(N+D) : 92dB @-0.5dBFS
   - Digital HPF (fc = 1Hz)
   - Single-ended or Full-differential Input
DAC: 4 channels
   - 24-bit 128x Over-sampling advanced multi-bit
   - DR, S/N : 113dBA
   - S/(N+D) : 90dB @-10dBFS, 83dB @0dBFS
   - Full-differential Output
   - SMUTE function
Other
   - Power supply: +5V±5%
   - Operating temperature range: -40°C~85°C
     Package: 100pin LQFP (0.5mm pitch)

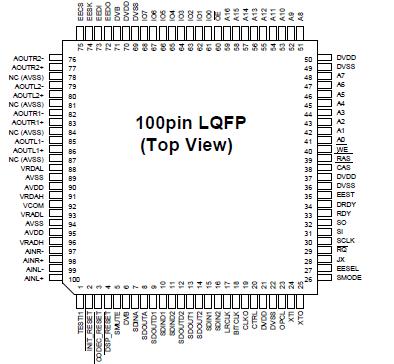

Pinout

Connection Diagram


Specifications

Item
Symbol
Min
Max
Unit
Power supply voltage
Analog (AVDD and DVB)
Digital (DVDD) (Note 1)

VA
VD
-0.3
-0.3

6.0
6.0 or (VA+0.3)
V
Input current (except for power supply pin )
IIN
-0.3
±10
mA
Analog input voltage
AINL+, AINL-, AINR+, AINR-,
VRADH, VRADL, VRDAH, VRDAL
VINA
-
VA+0.3
V
Digital input voltage (Note 1)
VIND
-0.3
VA+0.3
V
Operating ambient temperature
Ta
-40
85
Storage temperature
Tstg
-65
150
Note: 1. Must not exceed the maximum rating of 6.0 V (namely, VD (VA+ 0.3 V) 6.0 V).
                                                                                      (VA is a power supply to supply silicon substrate potential.)

WARNING: Operation at or beyond these limits may result in permanent damage of the device.
                  Normal operations are not guaranteed under these critical conditions in principle.


Description

The AK7716 is a highly integrated audio processing IC, including 4 24-bit output D/A channels, a stereo 20-bit input A/D, on-chip DSP. High quality analog performance is provided by quad D/A with 113dB dynamic range, and stereo A/D with 98dB dynamic range. These converters support the standard audio sampling frequencies of 48,44.1 and 32kHz.

The programmable DSP is optimized for audio signal processing. The design allows up to 512 execution lines per audio sample cycle, with multiple functions per line. The AK7716 has a self-boot capability, using an external EEPROM.

The AK7716 can be used to implement complete sound field control, such as echo, 3D, parametric equalization,etc. It is packaged in a 100-lead LQFP package
