AK6-058C

Package / Case :
Maximum Operating Temperature : + 150 C
Minimum Operating Temperature : - 55 C
Channels : 1 Channel
Polarity : Bidirectional
Termination Style : Through Hole
Operating Voltage : 58 V
Clamping Voltage : 110 V
Packaging : Tray
Peak Surge Current : 6000 A
Peak Pulse Power Dissipation : 6000 W
Breakdown Voltage : 64 V
Capacitance : 8 nF


Features:

• RoHS compliant
• Foldbak™ technology for superior clamping factor
• Glass Passivated Junction for reliabilty
• Bi-directional
• Ultra compact: 12 times less volume than traditional discrete solutions
• Very Low Clamping Voltage
• Sharp Breakdown Voltage
• Low Slope Resistance

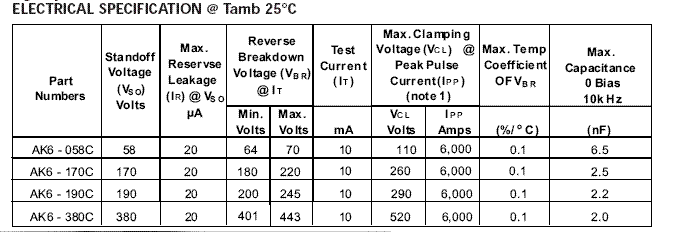

Specifications

• Current Rating (I_PP) 6KA (see note 1)
• Maximum Junction Temp. is 150°C
• Storage Temp. -55°C to 175°C
• Rated I_PP measured with 8 x 20 sec pulse



Description

The new AK6 series of high current transient suppressors have been specially designed for use in A.C. Line Protection and any demanding applications (AC or DC).AK6 series  offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak™ technology, which provides a clamping voltage which is lower than the avalanche voltage (but above the rated working voltage) therefore any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.

Parameters:

Technical/Catalog Information	AK6-058C
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	Axial
Packaging	Bulk
Polarization	Bidirectional
Power (Watts)	-
Voltage - Reverse Standoff (Typ)	58V
Voltage - Breakdown	64V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AK6 058C AK6058C
