AK4387

Features: · Sampling Rate Ranging from 8kHz to 192kHz· 128 times Oversampling (Normal Speed Mode)· 64 times Oversampling (Double Speed Mode)· 32 times Oversampling (Quad Speed Mode)· 24-Bit 8 times FIR Digital Filter· SCF with High Tolerance to Clock Jitter· Single Ended Output Buffer· Digital de-...

product image

AK4387 Picture
See larger image
SeekIC No. : 004279318 Detail

AK4387: Features: · Sampling Rate Ranging from 8kHz to 192kHz· 128 times Oversampling (Normal Speed Mode)· 64 times Oversampling (Double Speed Mode)· 32 times Oversampling (Quad Speed Mode)· 24-Bit 8 times ...

AK4387 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AK4387
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Sampling Rate Ranging from 8kHz to 192kHz
· 128 times Oversampling (Normal Speed Mode)
· 64 times Oversampling (Double Speed Mode)
· 32 times Oversampling (Quad Speed Mode)
· 24-Bit 8 times FIR Digital Filter
· SCF with High Tolerance to Clock Jitter
· Single Ended Output Buffer
· Digital de-emphasis for 32k, 44.1k and 48kHz sampling
· Soft mute
· Digital Attenuator (Linear 256 steps)
· I/F format: 24-Bit MSB justified, 24/20/16-Bit LSB justified or I2S
· Master clock: 256fs, 384fs, 512fs, 768fs or 1152fs (Normal Speed Mode) 128fs, 192fs, 256fs or 384fs (Double Speed Mode) 128fs, 192fs (Quad Speed Mode)
· THD+N: -90dB
· Dynamic Range: 106dB
· Power supply: 4.5 to 5.5V
· Very Small Package: 16pin TSSOP

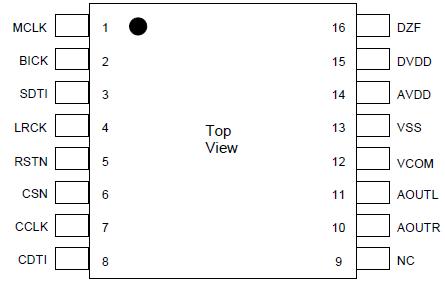

Pinout

Connection Diagram


Specifications

Parameter Symbol min max Units
Power Supply AVDD
 −0.3
 6.0
 V
Input Current, Any pin Except Supplies IIN   ±10 mA
Input Voltage VIND −0.3 VDD+0.3 V
Ambient Operating Temperature
AK4388ET
AK4388VT		 Ta -20
−40		 85 °C
Storage Temperature Tstg −65 150 °C



Description

The AK4387 offers the perfect mix for cost and performance based audio systems. Using AKM's multi bit architecture for its modulator the product delivers a wide dynamic range while preserving linearity for improved THD+N performance. The AK4387 integrates a combination of SCF and CTF filters increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of applications including DVD-Audio. The AK4387 is offered in a space saving 16pin TSSOP package.
