AK4384

Features:

Sampling Rate Ranging from 8kHz to 192kHz
128 times Oversampling (Normal Speed Mode)
64 times Oversampling (Double Speed Mode)
32 times Oversampling (Quad Speed Mode)
24-Bit 8 times FIR Digital Filter
SCF with High Tolerance to Clock Jitter
2nd order Analog LPF
Single Ended Output Buffer
Digital de-emphasis for 32k, 44.1k and 48kHz sampling
Soft mute
Digital Attenuator (Linear 256 steps)
I/F format: 24-Bit MSB justified, 24/20/16-Bit LSB justified or I²S
Master clock: 256fs, 384fs, 512fs, 768fs or 1152fs (Normal Speed Mode)
                        128fs, 192fs, 256fs or 384fs (Double Speed Mode)
                        128fs, 192fs (Quad Speed Mode)
THD+N: -94dB
Dynamic Range: 106dB
Power supply: 4.5 to 5.5V
Very Small Package: 16pin TSSOP (6.4mm x 5.0mm)

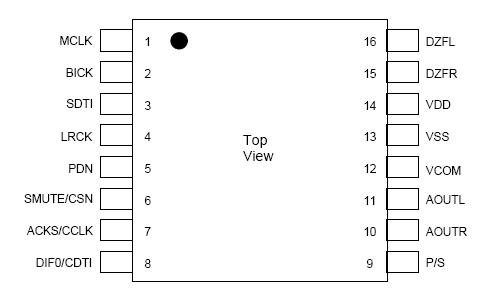

Pinout




Specifications

(VSS=0V; Note 1)

Parameter	Symbol	min	max	Units
Power Supply	VDD	-0.3	6.0	V
Input Current (any pins except for supplies)	IIN	-	±10	mA
Input Voltage	VIND	-0.3	VDD+0.3	V
Ambient Operating Temperature	Ta	-40	85	°C
Storage Temperature	Tstg	-65	150	°C

Note: 1. All voltages with respect to ground.


Description

The AK4384 offers the perfect mix for cost and performance based audio systems. Using AKM's multi bit architecture for its modulator the AK4384 delivers a wide dynamic range while preserving linearity for improved THD+N performance. It integrates a combination of SCF and CTF filters increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of applications including DVD-Audio. The AK4384 is offered in a space saving 16pin TSSOP package.
