AK4380

Features:

Sampling Rates Ranging from 8kHz to 96kHz
128x Oversampling (Normal speed mode)
64x Oversampling (Double speed mode)
24Bit 8x FIR Digital Filter
2nd order Analog LPF
On chip Buffer with Single End Output
Digital de-emphasis for 32k, 44.1k and 48kHz sampling
Soft mute
I/F format: 24bit MSB justified, 24/20/16bit LSB justified, I²S
Master clock: 256fs, 384fs, 512fs or 768fs (Normal speed mode)
128fs, 192fs, 256fs or 384fs (Double speed mode)
THD+N: -88dB
Dynamic Range: 100dB
High Tolerance to Clock Jitter
Power supply: 4.5 to 5.5V
Space Saving 16 Pin TSSOP (6.4mm x 5.0mm) Package

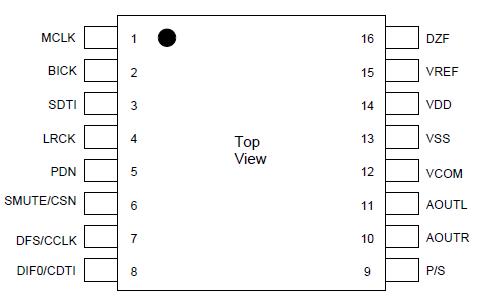

Pinout




Specifications

(VSS=0V; Note 1)

Parameter	Symbol	min	max	Units
Power Supplies	VDD	-0.3	6.0	V
Input Current, Any Pin Except Supplies	IIN	-	±10	mA
Input Voltage	VIND	-0.3	VDD+0.3	V
Ambient Temperature (powered applied)	Ta	-40	85	°C
Storage Temperature	Tstg	-65	150	°C

Note: 1. All voltages with respect to ground.


Description

The AK4380 offers the perfect mix for cost and performance based audio systems. Using AKM's multi bit architecture for its modulator the AK4380 delivers a wide dynamic range while preserving linearity for improved THD+N performance. The product integrates a combination of SCF and CTF filters, removing the need for high cost external filters and increasing performance for systems with excessive clock jitter. The 24 Bit word length and 96kHz sampling rate make this part ideal for a wide range of applications including DVD and AC-3 systems. The AK4380 is offered in a space saving 16pin TSSOP package.
