AK4364

Features:

Stereo  DAC
S/(N+D): 90dB@5V
DR: 102dB@5V
S/N: 102dB@5V
Multiple Sampling Frequencies:
         16kHz, 22.05kHz, 24kHz (Half speed)
         32kHz, 44.1kHz, 48kHz (Normal speed)
         64kHz, 88.2kHz, 96kHz (Double speed)
On-Chip Low Jitter Analog PLL:
        Multiple Master Clock Frequencies generated from 27MHz
        256fs/384fs/512fs/768fs/1024fs/1536fs for Half speed
        256fs/384fs/512fs/768fs for Normal speed
        128fs/192fs/256fs/384fs for Double speed
Master Clock: PLL / External
Data Input Formats:
         LSB justified / MSB justified / I2S selectable
Selectable Function:
        Soft Mute
        Digital Attenuator (256 Steps)
        Digital De-emphasis (44.1kHz/48kHz/32kHz)
Output Mode: Stereo, Mono, Reverse, Mute
On-Chip Digital Audio Interface Transmitter:
        Compatible with S/PDIF, IEC958, AES/EBU
        & EIAJ CP1201 consumer mode
Input Level:TTL/CMOS Selectable
Output Level: 3.0Vpp@5V
Control mode: 3-wire Serial / I2C Bus
Low Power Dissipation: 80mW@5V
Small 24pin VSOP Package
Power Supply: 2.7~5.5V
Ta: -40~85°C

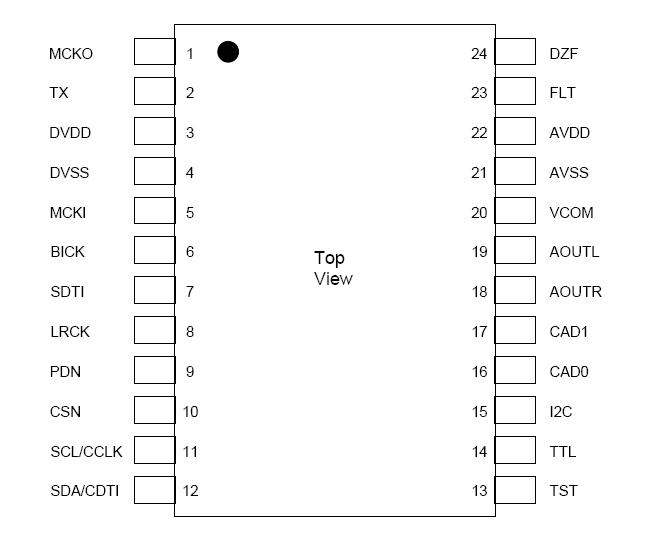

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supply:	Analog Digital |AVSS-DVSS| (Note 2)	AVDD DVDD GND	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current (any pins except for supplies)		IIN	-	±10	mA
Analog Input Voltage		VINA	-0.3	AVDD+0.3	V
Digital Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note:1. All voltages with respect to ground.
2. AVSS and DVSS must be connected to the same analog ground plane.


Description

The AK4364 is a stereo CMOS D/A Converter and Phase Locked Loop for use in digital video broadcast set-top box applications or DVD. The DAC signal outputs are single-ended and are analog filtered to remove out of band noise. Therefore no external filters are required. The PLL provides selectable sampling clock frequencies locked to the 27MHz recovered MPEG clock. The AK4364 has also Digital Audio Interface Transmitter.
