AK4363

Features:

Stereo  DAC
S/(N+D):  90dB@5V
DR:          102dB@5V
S/N:         102dB@5V
Multiple Sampling Frequencies:
          16kHz, 22.05kHz, 24kHz (Half speed)
          32kHz, 44.1kHz, 48kHz (Normal speed)
          64kHz, 88.2kHz, 96kHz (Double speed)
On-Chip Low Jitter Analog PLL:
           Multiple Master Clock Frequencies generated from 27MHz
           256fs/384fs/512fs/768fs/1024fs/1536fs     for Half speed
           256fs/384fs/512fs/768fs                             for Normal speed
           128fs/192fs/256fs/384fs                             for Double speed
Master Clock: PLL / External
Data Input Formats:
           LSB justified / MSB justified / I²S selectable
Selectable Function:
           Soft Mute
           Digital Attenuator (256 Steps)
           Digital De-emphasis (44.1kHz/48kHz/32kHz)
Output Mode: Stereo, Mono, Reverse, Mute
Input Level:TTL/CMOS Selectable
Output Level: 3.0Vpp@5V
Control mode: 3-wire Serial / I²C Bus
Low Power Dissipation: 80mW@5V
Small 24pin VSOP Package
Power Supply: 2.7~5.5V
Ta: -40~85°C

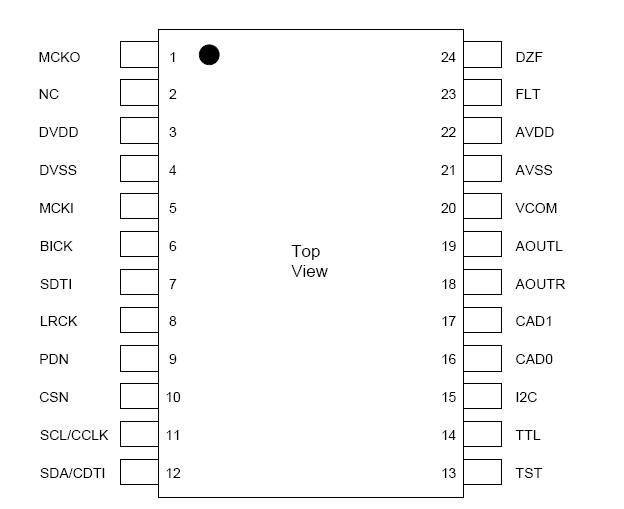

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supply:	Analog Digital |AVSS-DVSS| (Note 2)	AVDD DVDD GND	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current (any pins except for supplies)		IIN	-	±10	mA
Analog Input Voltage		VINA	-0.3	AVDD+0.3	V
Digital Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note:1. All voltages with respect to ground.
         2. AVSS and DVSS must be connected to the same analog ground plane.


Description

The AK4363 is a stereo CMOS D/A Converter and Phase Locked Loop for use in digital video broadcast set-top box applications or DVD. The DAC signal outputs are single-ended and are analog filtered to remove out of band noise. Therefore no external filters are required. The PLL provides selectable sampling clock frequencies locked to the 27MHz recovered MPEG clock.
