AK4317

Features:

Sampling Rate Ranging from 8kHz to 50kHz
On chip Perfect filtering
      8 times FIR Interpolator
      2nd order SCF
      2nd order CTF
Digital de-emphasis for 32, 44.1, 48kHz sampling
L/R Separated Volume
L/R Mixing
Soft Mute
Audio I/F format : MSB justified, LSB justified, I²S
Master Clock: 256fs or 384fs
High Tolerance to Clock Jitter
THD+N: -86dB
DR: 92dB
Power Supply:4.5 to 5.5V
Small Package: 24pin VSOP
AK4311 Compatible

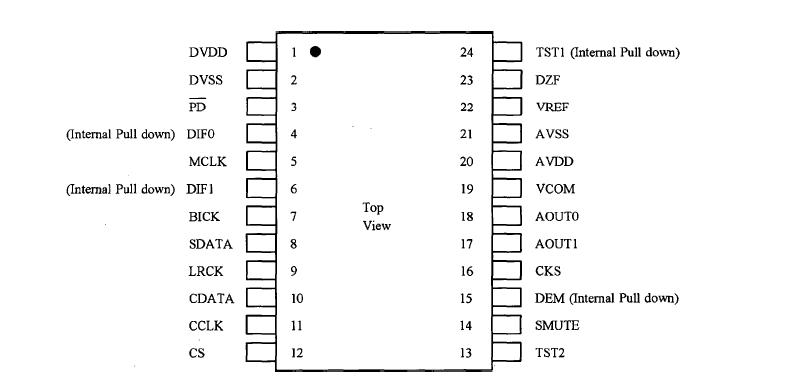

Pinout




Specifications

(AVSS,DVSS=0V; Note 1 )

Parameter		Symbol	min	max	Units
Power Supplies:	Analog Digital DADD-AVDD	AVDD DVDD VDA	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Input Voltage		VINA	-0.3	AVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note: 1 . All voltages with respect to ground.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.Normal operation is not guaranteed at these extremes.


Description

The AK4317 is a 1bit stereo DAC with channel separated volume and channel mixer. This DAC also includes 18bit digital filter and analog LPF. A 1bit DAC can achieve monotonicity and low distortion with no adjustment and is superior to traditional R-2R ladder based DACs. In the product, the loss of accuracy from clock jitter is also improved by using SCF techniques for on-chip post filter. Therefore, the AK4317 is suitable for the system like STB including PLL circuit.
