AK2540

Features:

- 4ch short haul T1 transceiver with jitter attenuator
- Jitter Tolerance: Compliant with GR-499 Category I,II and TR 62411
- Transmitter Pulse Shape: Compliant with GR-499 and ANSI T1.102 (1993)
- Loss of Signal Detection
- Local/Remote Loopback Mode
- Driver Failure Monitor
- Current limiter in transmit drivers for short circuits protection
- Hardware/Host Control Mode
- Single 3.3V±5% or 5.0V±5% Operation
- Low Power Consumption
- Package: 144LQFP

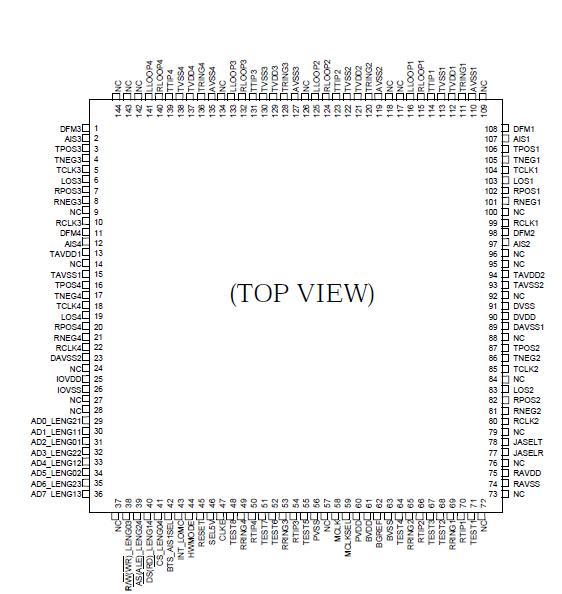

Pinout




Specifications

Parameters	Symbol	Min	Typ	Max	Units	Condition
DC Supply	VDD	-0.3		6.5	V
Input Voltage	VIN1	-0.3		VDD+0.3	V	Apply to except for RTIPx, RRINGx
	VIN2	-3.2		VDD+0.3	V	Apply to RTIPx,RRINGx
Input Current	IIN			10	mA	All Pins
Storage Temperature1	Tstg	-55		30	°C

Description

The AK2540 is the quad short haul T1 transceiver for asynchronous applications, such as M13 MUX, etc. It includes Transmitter, Clock and Data Recovery, Jitter Attenuator, LOS Detector,Driver Failure Monitor, Control Circuits, etc. in one LQFP-144 package. Internally generated transmit pulse provides the appropriate pulse shape for line length ranging from 0 to 655 feet from a DSX-1 cross connect.
