Features:

• Wide output voltage range (1.24 to 20V)
• Operating current from 60A to 100mA
• Low dynamic output resistance of 50m
• ±0.5% trimmed voltage reference
• 10mV typ. VREF deviation, from -40 to +105°C
• Surface mount 3 or 5 pin SOT-23 or throughhole 3 pin TO-92 packages




Application

• Notebook computers
• Isolated feedback in switching power supplies
• Adjustable and programmable supplies
• Linear regulators (External Reference)
• Instrumentation
• Medical Electronics*
• Global voltage reference for multiple power supplies




Pinout

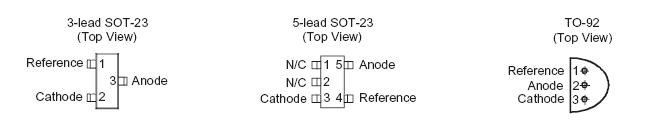

Connection Diagram




Specifications

Symbol Description Value Units
VZ Cathode Voltage 20 V
IZ Continuous Cathode Current 100 mA
IREF Reference Current 3 mA
TJ Operating Junction Temperature Range -40 to 150
 °C
JA Maximum Thermal Resistance TO-92 160 °C/W
SOT-23-3, SOT-23-5 410
PD Maximum Power Dissipation TO-92 780 mW
SOT-23-3, SOT-23-5 300
TLEAD Maximum Soldering Temperature (at Leads) 260 °C





Description

The AHK432 is a low voltage adjustable shunt reference with thermal stability guaranteed over the full industrial temperature range. This 3-terminal regulator has an output voltage range that extends from VREF (1.24V) to 20V, giving designers outstanding flexibility in the development of power supplies and instrumentation. With a low operating current of 60A, the AHK432 is well suited for battery-powered portable electronic applications. It also has a sharp turn-on characteristic and a dynamic resistance of only 50mW making it an excellent replacement for zener diodes in low tempco designs.

The AHK432 is available in the surface-mount 3 or 5 pin SOT-23, as well as the through hole TO-92.Three voltage tolerance options are offered in each package: ±0.5%, ±1%, and ±2%.
