AHB1548EH

FAN DC AXIAL 48V 172X150X25.4

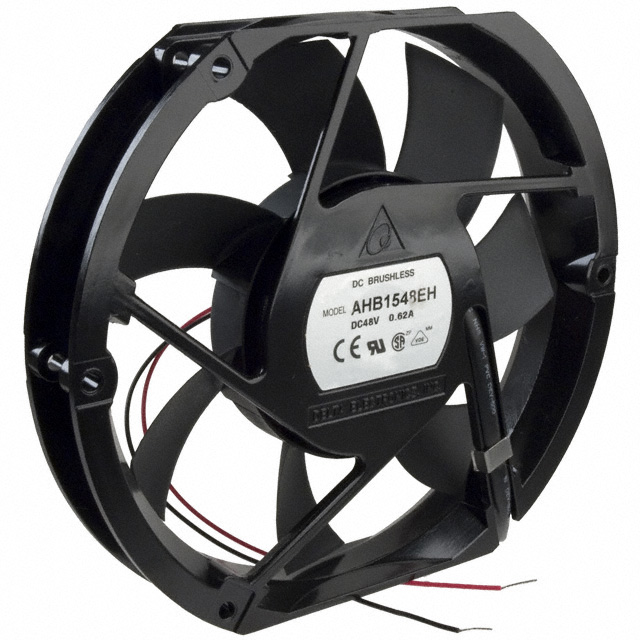

product image

AHB1548EH Picture
See larger image
SeekIC No. : 003442215 Detail

AHB1548EH: FAN DC AXIAL 48V 172X150X25.4

AHB1548EH Data Sheet

floor Price/Ceiling Price

US $ 52.93~52.93 / Piece | Get Latest Price
Part Number:
AHB1548EH
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~12
  • Unit Price
  • $52.93
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: AHB Manufacturer: Delta Product Groups
Fan Type: Tubeaxial Size / Dimension: Rectangular/Rounded - 172mm L x 150mm H x 25.4mm W
Voltage - Rated: 48VDC Power (Watts): 25.0W
Features: - RPM: 4000 RPM
Noise: 61 dB(A) Static Pressure: 0.736 in H2O (183.3 Pa)
Package / Case : SOT-393 Air Flow: 271.1 CFM (7.67m³/min)
Termination: 2 Wire Leads Bearing Type: Ball

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Operating Temperature: -
Bearing Type: Ball
RPM: 4000 RPM
Voltage - Rated: 48VDC
Size / Dimension: Rectangular/Rounded - 172mm L x 150mm H x 25.4mm W
Manufacturer: Delta Product Groups
Noise: 61 dB(A)
Power (Watts): 25.0W
Series: AHB
Static Pressure: 0.736 in H2O (183.3 Pa)
Air Flow: 271.1 CFM (7.67m³/min)


Parameters:

Technical/Catalog InformationAHB1548EH
VendorDelta Product Groups
CategoryFans
Voltage - Rated 48VDC
Power (Watts)25W
Bearing TypeBall
Size / DimensionRound - 172mm L x 150mm H x 25.4mm W
Air Flow271.1 CFM
Features-
Termination2 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AHB1548EH
AHB1548EH
603 1101 ND
6031101ND
603-1101
