Features:

Bipolar Hall effect latch sensor
2.2V to 20V DC operation voltage
Built-in pull-up resistor
25mA output sink current
Operating temperature: −40°C ~ +125°C

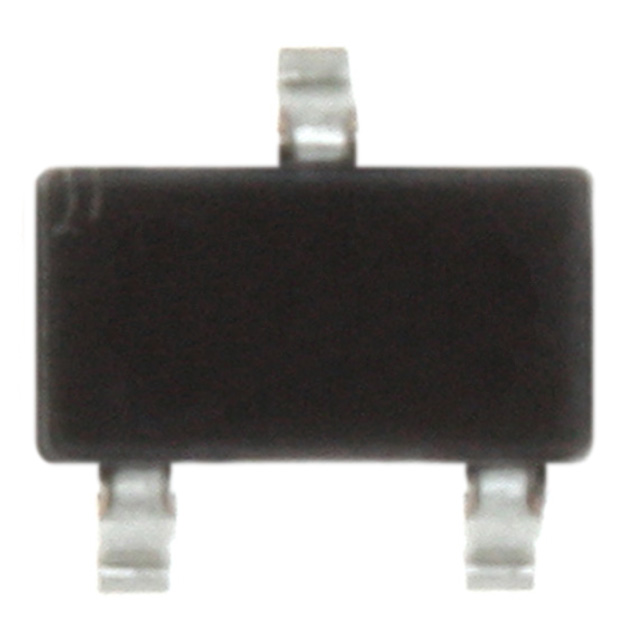

Package: SIP3, SOT23





Application

Rotor position sensing
Current switch
Encoder
RPM detection





Pinout

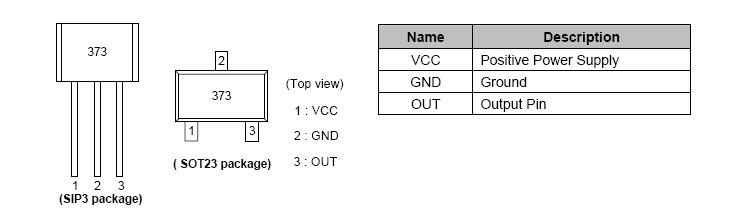

  Connection Diagram




Specifications

Part Number AH373
Description CMOS Hall Effect Latch
process CMOS
Operating Voltage (V) 2.5 ~ 20
Output Current (Ave) 25mA
Operating Point Bop (Gauss) 5/60
Release Point Brp (Gauss) -60/-5
Operating Ambient Temp Range (°C) -40 to +125


Characteristics
Symbol
Values
Unit
Supply voltage
VCC
20
V
Output "off " voltage
Vout (off)
28
V
Output "on" current
Io (sink)
25
mA
Operating temperature range
Top
-40~+125
°C
Storage temperature range
Tstg
-65~+150
°C
Power dissipation SIP
PD
550
mW
SOT23
230
mW





Description

AH373 is a single-digital-output Hall-effect sensor with pull-up resistor for high temperature operation.The AH373 includes an on-chip Hall voltage generator for magnetic sensing, an amplifier to amplify Hall voltage, and a comparator to provide switching hysteresis for noise rejection, and an output driver with a pull-up resistor (Rpu). An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range. While the magnetic flux density (B) is larger than operate point (Bop), the OUT pin turns on (low). If B moves toward release point (Brp), the OUT pin is latched "on" state prior to B < Brp. When B < Brp, the OUT pin go into " off " state.
